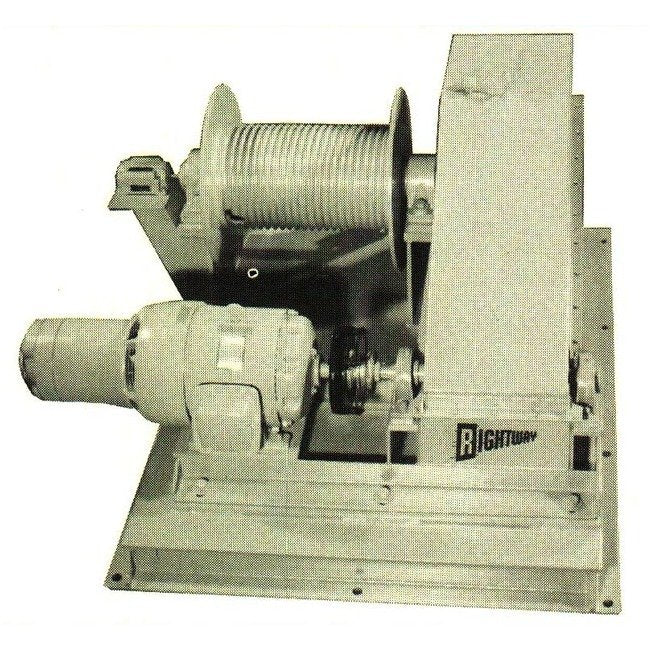

Series 50 Model PE Electric Winch with 5HP Motor
Series 50 Model PE Electric Winch with 5HP Motor
SKU:RIG-c4597d
Enhance efficiency and safety with the Series 50 Model PE Electric Winch. Durable, high-performance winch for all weather conditions.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Series 50 Model PE Electric Winch with 5HP Motor
$2,999.99
Quantity: 1
Claim Your Seller Account
Series 50 Model PE Electric Winch with 5HP Motor
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Model PE Electric Winch is engineered for durability and high-performance in all weather conditions. With a 5:1 structural safety factor, this winch boasts a robust all-steel construction. It features an enclosed oil-lubricated power train, an automatic mechanical load-holding brake that doesn't generate heat, and high-efficiency power transmission for increased lifting capacity with minimal horsepower. The high torque crane and hoist duty motor provide reliable starting capacity, while the large diameter drum enhances wire rope longevity. Ideal for lifting and pulling applications, this winch offers optional equipment such as grooved drums, overspeed automatic load-holding brake, and torque limiter for added safety and efficiency.
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
10 inches
Specifications Full Drum
400 ft.
Specifications Line Speed
15 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
725 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
20 inches
Specifications Winch Length
29 inches
Specifications Winch Width
34 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
245 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
