Series 50 PE Electric Winch - 2HP 2000 lbs Capacity
Series 50 PE Electric Winch - 2HP 2000 lbs Capacity
SKU:RIG-b01172
Heavy-duty Series 50 PE Electric Winch for efficient lifting and pulling operations. 2HP, 2000 lbs Capacity. All-weather steel construction.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 50 PE Electric Winch - 2HP 2000 lbs Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 50 PE Electric Winch - 2HP 2000 lbs Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

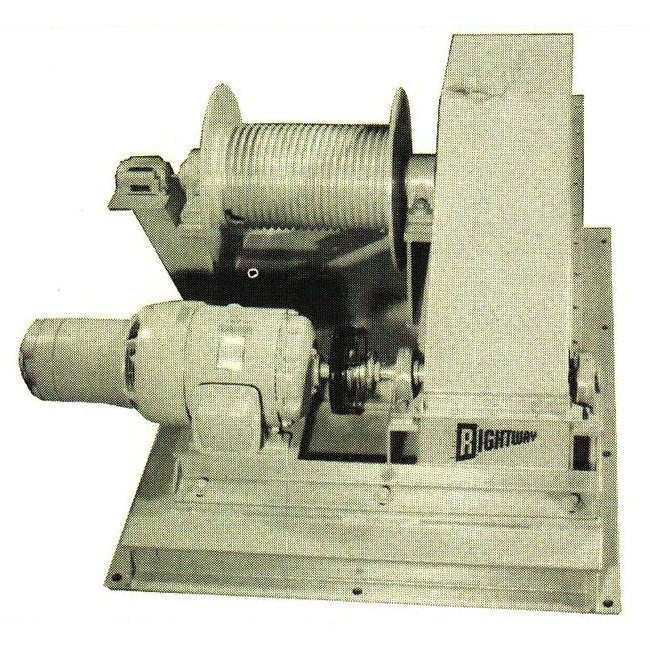

The Series 50 Model PE Electric Winch is engineered for all-weather use, featuring a steel construction with a minimum 5 to 1 structural safety factor. Equipped with a high-efficiency power transmission system, this winch requires less horsepower to lift heavy loads at a line speed of 30 FPM. The automatic mechanical load holding brake ensures safe operations without generating excess heat. With standard features such as a high torque motor, large diameter drums for increased wire rope life, and various optional equipment like grooved drums and overspeed load holding brake, this winch is ideal for lifting and pulling applications, meeting stringent industry standards for reliability and performance.
Product Specifications
Specifications Capacity Full Load Running
2000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
6 inches
Specifications Full Drum
500 ft.
Specifications Line Speed
30 FPM
Specifications Motor
2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
340 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
15 inches
Specifications Winch Length
24 inches
Specifications Winch Width
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
185 ft.
Specifications Wire Rope Size
5/16 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
