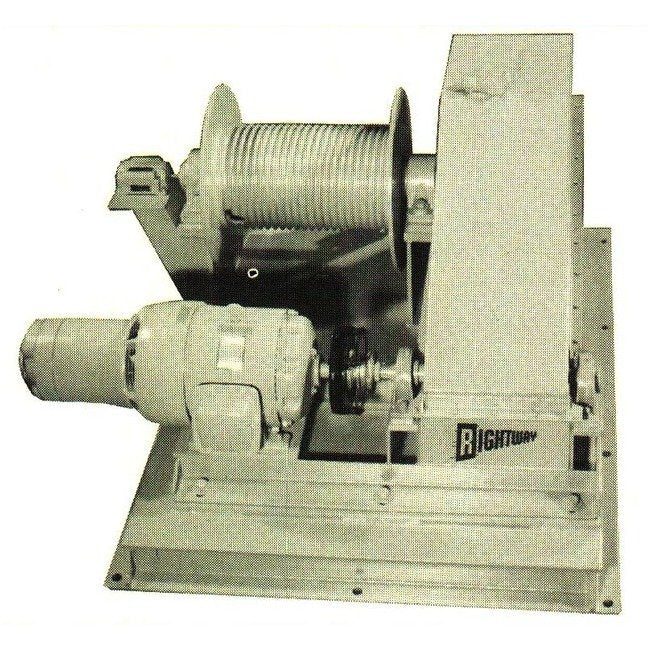

Series 50 PE Electric Winch - 5HP, 5000 lbs Capacity
Series 50 PE Electric Winch - 5HP, 5000 lbs Capacity
SKU:RIG-f04195
High-performance Series 50 PE Electric Winch: 5HP, 5000 lbs Capacity. Built for durability, efficiency & safety.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Series 50 PE Electric Winch - 5HP, 5000 lbs Capacity
$1,899.99
Quantity: 1
Claim Your Seller Account
Series 50 PE Electric Winch - 5HP, 5000 lbs Capacity
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Model PE Electric Winch is designed for all-weather use with a minimum 5 to 1 structural safety factor, ensuring durability and reliability. Featuring an enclosed oil-lubricated power train and automatic mechanical load holding brake, this winch offers high efficiency power transmission, enabling faster operation with minimal horsepower. With a high torque crane and hoist duty motor and large diameter drums, it enhances wire rope life. Ideal for lifting and pulling applications, this winch comes with optional equipment like grooved drums and electric motor brake for enhanced functionality.
Product Specifications
Specifications Capacity Full Load Running
5000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
8 inches
Specifications Full Drum
570 ft.
Specifications Line Speed
30 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
540 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
20 inches
Specifications Winch Length
27 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
225 ft.
Specifications Wire Rope Size
1/2 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
