Series 50 Wafer Butterfly Valve

Name: Series 50 Wafer Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-3ea607
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-3ea607

Series 50 Wafer Butterfly Valve - Reliable, versatile, and durable industrial valve with ISO 5752 S-20 dimensions and multiple material options.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 50 Wafer Butterfly Valve is a high-performance valve designed to meet the demanding requirements of industrial applications. Featuring a Face to Face dimension according to ISO 5752 S-20 and a Flange Connection compatible with DIN, JIS, and ANSI standards, this valve ensures reliable operation and easy installation. With a Size Range from 40A to 1000A (1-1/2" to 40") and a variety of Body Material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, this valve offers versatility and durability. The Stem Material is Stainless Steel, while the Disc Material options include Ductile Iron, Stainless Steel, and Aluminum Bronze, providing excellent corrosion resistance. The Seat Material choices of NBR, EPDM, Viton, and Teflon, along with various Packaging options, make this valve suitable for a wide range of fluid handling applications.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

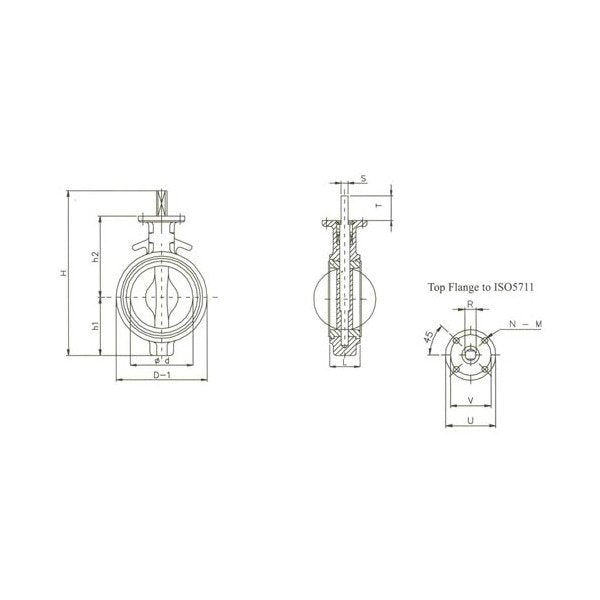

Specifications D

327 mm

Specifications D 1

416 mm

Specifications H

675 mm

Specifications H1

271 mm

Specifications H2

324 mm

Specifications L

78 mm

Specifications Size

350 - 14"

Specifications Standard

ISO

Specifications Stem R

32 mm

Specifications Stem S

20 mm

Specifications Stem T

45 mm

Specifications Top Flange To Iso 5211 M Diameter

12 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

125 mm

Specifications Top Flange To Iso 5211 V

102 mm

Specifications Type

Butterfly Valve

Specifications Weight

43 kg

Series 50 Wafer Butterfly Valve
