Series 50 Wafer Butterfly Valve

Name: Series 50 Wafer Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-5eaae8
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-5eaae8

Versatile Series 50 Wafer Butterfly Valve, ideal for industrial applications. Sizes 1-1/2" to 40", with durable materials for reliable performance.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 50 Wafer Butterfly Valve is designed to meet ISO 5752 S-20 standards, offering a versatile solution for fluid control in a range of applications. With a size range of 1-1/2" to 40" and body material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, this valve ensures durability and performance. Featuring disc materials like Ductile Iron, Stainless Steel, and Aluminum Bronze, coupled with options for various seat and packing materials, this valve provides reliable operation and efficient sealing. Whether in industrial or institutional settings, this butterfly valve delivers consistent and secure flow control.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

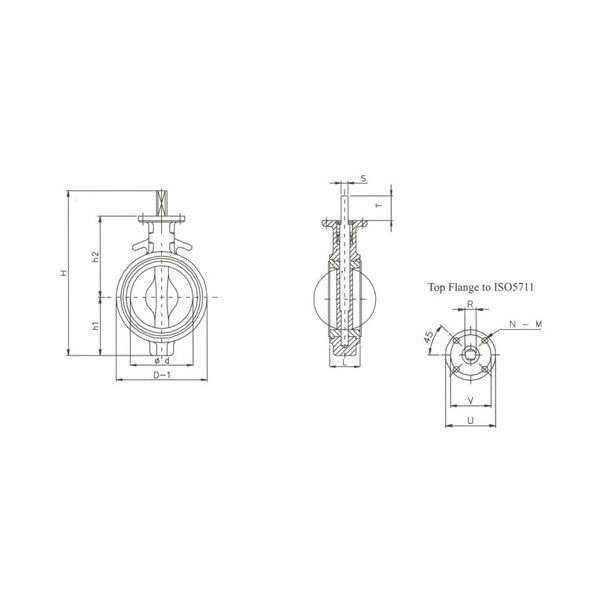

Specifications D

477 mm

Specifications D 1

586 mm

Specifications H

1008 mm

Specifications H1

421 mm

Specifications H2

485 mm

Specifications L

127 mm

Specifications Size

500 - 20"

Specifications Standard

ISO

Specifications Stem R

45 mm

Specifications Stem T

60 mm

Specifications Top Flange To Iso 5211 M Diameter

22 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

210 mm

Specifications Top Flange To Iso 5211 V

165 mm

Specifications Type

Butterfly Valve

Specifications Weight

115.0 kg
