Series 50 Wafer Butterfly Valves
Series 50 Wafer Butterfly Valves
SKU:VAL-b06f67
Precision-engineered Series 50 Wafer Butterfly Valves for industrial applications. ISO compliant.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Series 50 Wafer Butterfly Valves
$1,299.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Butterfly Valves
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Butterfly Valves are precision-engineered to meet the demands of diverse industrial applications. With face-to-face dimensions complying with ISO 5752 S-20 and a flange connection available in DIN, JIS, and ANSI standards, these valves offer a size range from 1-1/2" to 40". Constructed from quality materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure durability and reliability. The disc in Ductile Iron, Stainless Steel, or Aluminum Bronze, along with Stainless Steel stem and various seat and packing materials, provide versatile options to suit different operational requirements.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

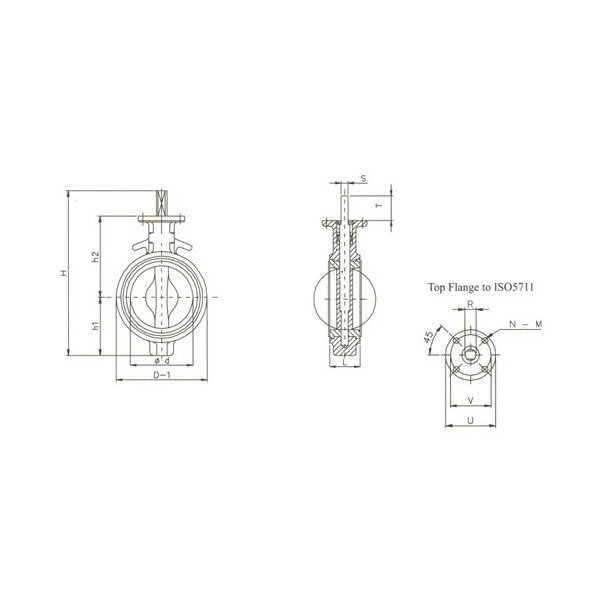

Specifications D
990 mm
Specifications D 1
1125 mm
Specifications H
1802 mm
Specifications H1
790 mm
Specifications H2
842 mm
Specifications L
216 mm
Specifications Size
1000 - 40"
Specifications Standard
ISO
Specifications Stem R
90 mm
Specifications Stem T
140 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
350 mm
Specifications Top Flange To Iso 5211 V
298 mm
Specifications Type
Butterfly Valve
Specifications Weight
977 kg
