Series 50 Wafer Butterfly Valves
Series 50 Wafer Butterfly Valves
SKU:VAL-c473c9
High-quality Series 50 Wafer Butterfly Valves for industrial applications - robust, reliable, and compliant with ISO standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Series 50 Wafer Butterfly Valves
$799.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Butterfly Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Butterfly Valves are precision-engineered for superior performance in industrial applications. Compliant with ISO 5752 standards, these valves feature a Size Range of 40A to 1000A, offering options in Body Materials like Cast Iron, Ductile Iron, and Stainless Steel. With Disc Materials including Ductile Iron and Stainless Steel, and Stem Materials made of Stainless Steel, these valves ensure durability and efficiency. The Seats and Packings in NBR, EPDM, and Viton provide excellent sealing properties, making them ideal for diverse environments.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

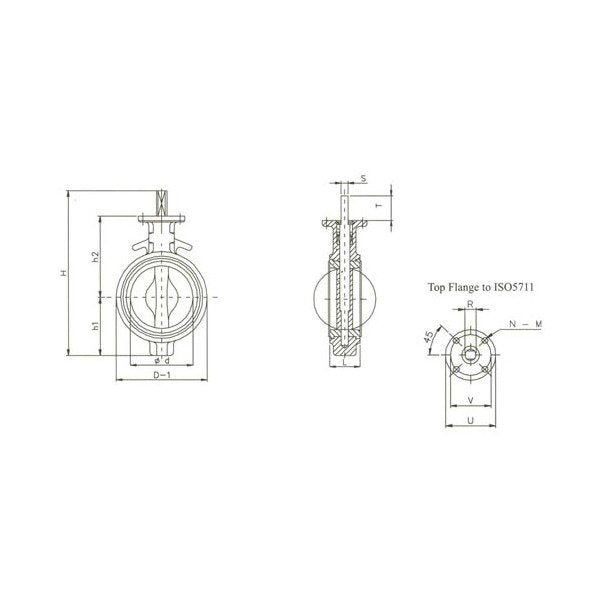

Specifications D
900 mm
Specifications D 1
1020 mm
Specifications H
1625 mm
Specifications H1
690 mm
Specifications H2
671 mm
Specifications L
203 mm
Specifications Size
900 - 36"
Specifications Standard
ISO
Specifications Stem R
80 mm
Specifications Stem T
140 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
350 mm
Specifications Top Flange To Iso 5211 V
298 mm
Specifications Type
Butterfly Valve
Specifications Weight
699 kg
