Series 50 Wafer Butterfly Valves 150-6"
Series 50 Wafer Butterfly Valves 150-6"
SKU:VAL-b88ce8
Get superior performance with Series 50 Wafer Butterfly Valves, compliant with ISO standards. Available in sizes 150-6".
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Series 50 Wafer Butterfly Valves 150-6"
$299.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Butterfly Valves 150-6"
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Butterfly Valves are designed to meet ISO 5752 S-20 requirements, providing reliable performance in industrial applications. Available in sizes ranging from 150 to 6 inches, these valves feature a variety of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, ensuring compatibility with diverse operating conditions. With options for disc materials like Ductile Iron, Stainless Steel, and Aluminum Bronze, along with seat materials such as NBR, EPDM, Viton, and Teflon, these valves offer exceptional versatility and durability. The Stainless Steel stem and NBR, EPDM, Viton packings further enhance the valves' resilience and longevity.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

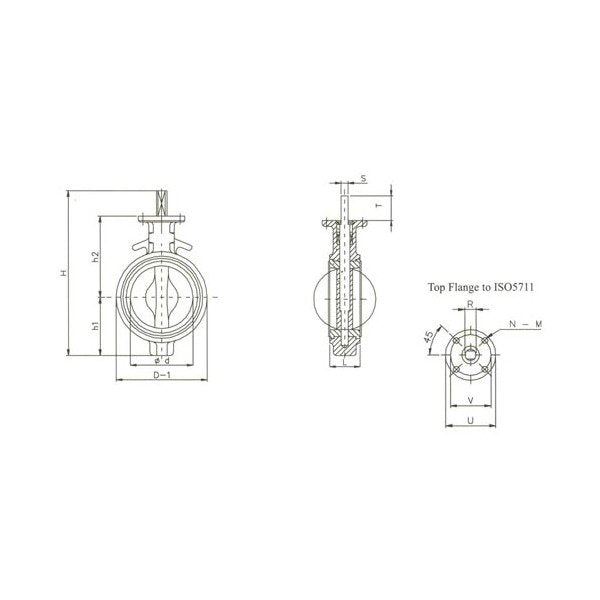

Specifications D
150 mm
Specifications D 1
210 mm
Specifications H
363 mm
Specifications H1
140 mm
Specifications H2
191 mm
Specifications L
56 mm
Specifications Size
150 - 6"
Specifications Standard
ISO
Specifications Stem R
19 mm
Specifications Stem S
15 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
9.0 kg
