Series 50 Wafer Butterfly Valves - Institutional Grade
Series 50 Wafer Butterfly Valves - Institutional Grade
SKU:VAL-454d4e
Series 50 Wafer Butterfly Valves - Reliable, compliant, and precise. Perfect for institutional procurement.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Series 50 Wafer Butterfly Valves - Institutional Grade
$599.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Butterfly Valves - Institutional Grade
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Butterfly Valves are engineered to meet the exacting standards of institutional and government procurement. Compliant with ISO 5752 S-20 for face to face dimensions and available in sizes ranging from 40A to 1000A (1-1/2" to 40"), these valves offer versatility and durability. Constructed from materials like Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, with options for disc, stem, seat, and packaging materials, these valves ensure reliable performance in diverse applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

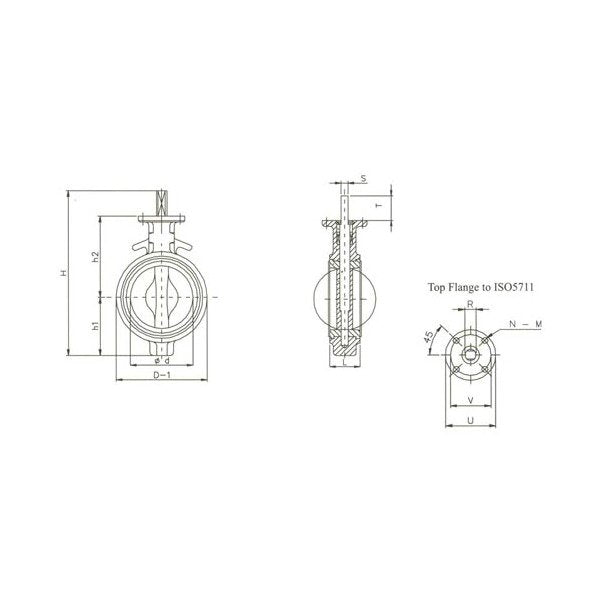

Specifications D
438 mm
Specifications D 1
535 mm
Specifications H
877 mm
Specifications H1
366 mm
Specifications H2
406 mm
Specifications L
114 mm
Specifications Size
450 - 18"
Specifications Standard
ISO
Specifications Stem R
38 mm
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Type
Butterfly Valve
Specifications Weight
99 kg
