Series 50 Wafer Butterfly Valves - Institutional-Grade Solutions
Series 50 Wafer Butterfly Valves - Institutional-Grade Solutions
SKU:VAL-b3ddf7
Series 50 Wafer Butterfly Valves - Premium quality, ISO-compliant valves for institutional use.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Series 50 Wafer Butterfly Valves - Institutional-Grade Solutions
$699.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Butterfly Valves - Institutional-Grade Solutions
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Valves are meticulously engineered to meet the stringent demands of institutional and government sectors. Compliant with ISO 5752 standards, these valves offer a wide size range from 40A to 1000A, catering to diverse industrial needs. Constructed from premium materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure durability and reliability in critical applications. With disc materials of Ductile Iron, Stainless Steel, Aluminum Bronze, and premium seat materials like NBR, EPDM, Viton, and Teflon, these valves guarantee superior performance in various environments.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

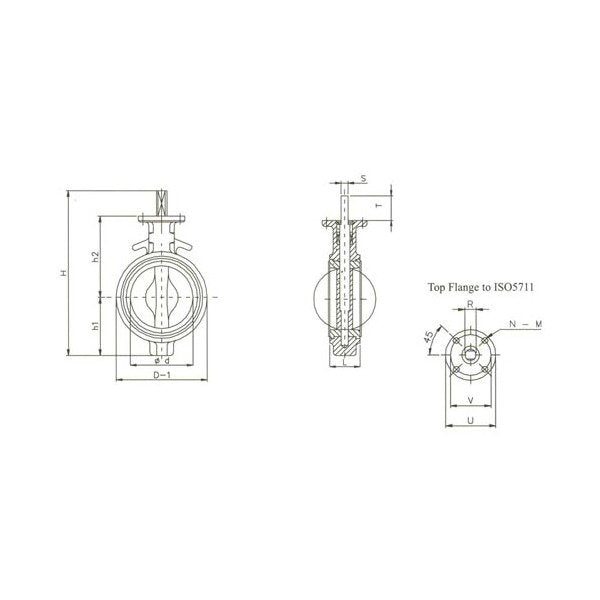

Specifications D
560 mm
Specifications D 1
695 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications L
154 mm
Specifications Size
600 - 24"
Specifications Standard
ISO
Specifications Stem R
50 mm
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Type
Butterfly Valve
Specifications Weight
215 kg
