Series 50 Wafer Butterfly Valves - Stainless Steel
Series 50 Wafer Butterfly Valves - Stainless Steel
SKU:VAL-3070a0
High-quality Series 50 Wafer Butterfly Valves meeting ISO standards. Diverse materials and sizes available for optimal performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Series 50 Wafer Butterfly Valves - Stainless Steel
$299.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Butterfly Valves - Stainless Steel
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Butterfly Valves are designed for precision performance in industrial applications. Meeting ISO 5752 S-20 standards, these valves offer reliable operation with flange connections compatible with DIN, JIS, and ANSI standards. Available in sizes ranging from 1-1/2 inches to 40 inches, with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The valves feature Ductile Iron, Stainless Steel, or Aluminum Bronze discs, Stainless Steel stems, and NBR, EPDM, Viton, or Teflon seat and packing options, providing versatility and durability for a range of applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

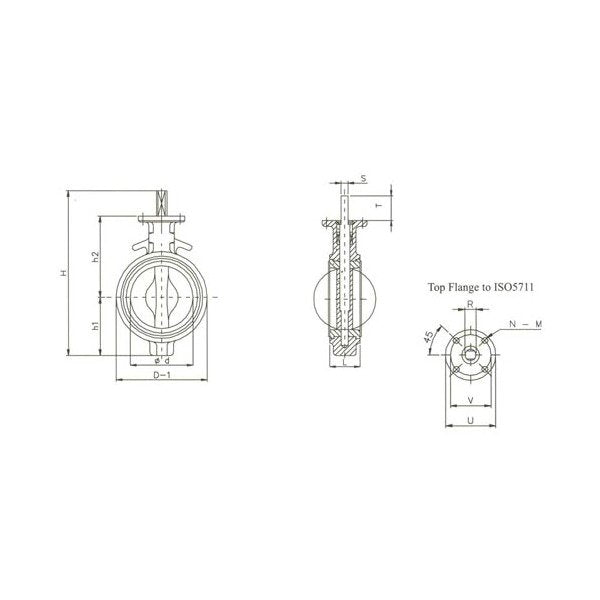

Specifications D
125 mm
Specifications D 1
183 mm
Specifications H
331 mm
Specifications H1
125 mm
Specifications H2
177 mm
Specifications L
56 mm
Specifications Size
125 - 5"
Specifications Standard
ISO
Specifications Stem R
19 mm
Specifications Stem S
12 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
8.9 kg
