Series 50 Wafer Valve - Industrial Butterfly Valve
Series 50 Wafer Valve - Industrial Butterfly Valve
SKU:VAL-2e7606
Series 50 Wafer Valve - Precision industrial butterfly valve meeting ISO standards. Diverse materials for robust performance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Series 50 Wafer Valve - Industrial Butterfly Valve
$599.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Valve - Industrial Butterfly Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Valve is a versatile industrial butterfly valve designed for precision performance. With a size range from 40A to 1000A, this valve features a variety of body materials including cast iron, ductile iron, carbon steel, stainless steel, and bronze. The disc, stem, and seat materials cater to different operational requirements, ensuring flexibility and durability. Compliant with ISO 5752 standards, this valve is engineered for reliability and optimal flow control in a range of applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

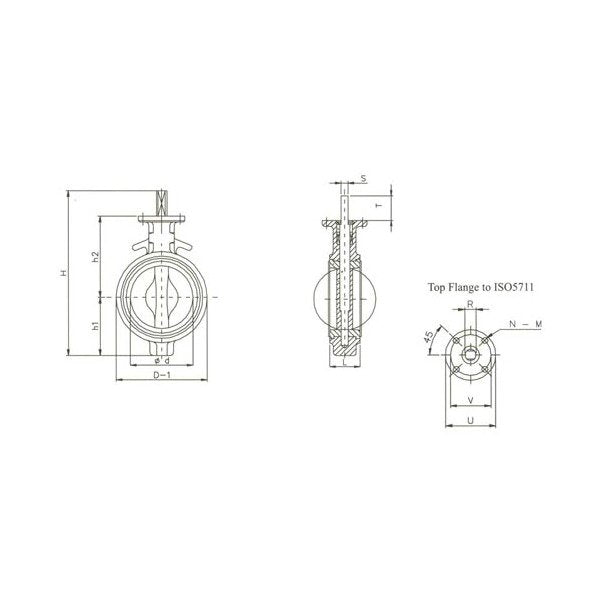

Specifications D
248 mm
Specifications D 1
328 mm
Specifications H
506 mm
Specifications H1
205 mm
Specifications H2
267 mm
Specifications L
68 mm
Specifications Size
250 - 10"
Specifications Standard
ISO
Specifications Stem R
28 mm
Specifications Stem S
18 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Type
Butterfly Valve
Specifications Weight
20.0 kg
