Series 50 Wafer Valve - Institutional Grade
Series 50 Wafer Valve - Institutional Grade
SKU:VAL-64154a
Series 50 Wafer Valve - Precision-engineered butterfly valve for industrial applications. Sizes from 1-1/2" to 40". Various durable material options.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Series 50 Wafer Valve - Institutional Grade
$699.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Valve - Institutional Grade
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Valve combines precision engineering and durable materials to deliver reliable performance in a wide range of industrial applications. With sizes ranging from 1-1/2" to 40", this butterfly valve features a Body Material selection including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The Stem Material is exclusively Stainless Steel for enhanced longevity and corrosion resistance. Compliant with ISO standards, this valve ensures efficient fluid control and longevity in operation.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

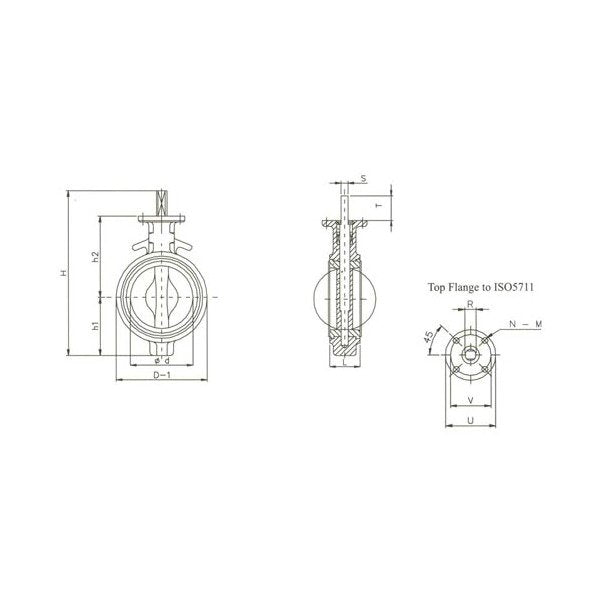

Specifications D
298 mm
Specifications D 1
374 mm
Specifications H
538 mm
Specifications H1
249 mm
Specifications H2
295 mm
Specifications L
78 mm
Specifications Size
300 - 12"
Specifications Standard
ISO
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Type
Butterfly Valve
Specifications Weight
32.0 kg
