Series 50 Wafer Valve - Multi-Material Butterfly Valve
Series 50 Wafer Valve - Multi-Material Butterfly Valve
SKU:VAL-f157e9
Series 50 Wafer Valve: ISO 5752 compliant butterfly valve for precise fluid control in industrial settings.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Series 50 Wafer Valve - Multi-Material Butterfly Valve
$289.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Valve - Multi-Material Butterfly Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Valve is a versatile butterfly valve designed for precision performance in industrial applications. Compliant with ISO 5752 standards, this valve features a range of sizes from 1-1/2" to 40" with body materials including cast iron, ductile iron, carbon steel, stainless steel, and bronze. The various disc, stem, seat, and packing material options ensure compatibility with a wide range of operating conditions, making it a reliable choice for fluid control systems.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

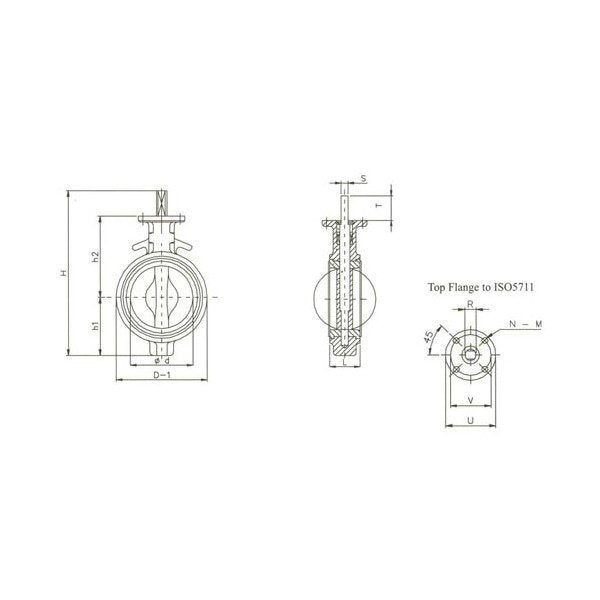

Specifications D
52 mm
Specifications D 1
102 mm
Specifications H
240 mm
Specifications H1
78 mm
Specifications H2
130 mm
Specifications L
43 mm
Specifications Size
050 - 2"
Specifications Standard
ISO
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
3.70 kg
