Series 50 Wafer Valves - Butterfly Valve for Precise Flow Control
Series 50 Wafer Valves - Butterfly Valve for Precise Flow Control
SKU:VAL-c0fc44
Series 50 Wafer Valves - ISO 5752 S-20 Butterfly Valve for precise flow control. Sizes 40A-1000A. Durable materials, customizable for various applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Series 50 Wafer Valves - Butterfly Valve for Precise Flow Control
$349.99
Quantity: 1
Claim Your Seller Account
Series 50 Wafer Valves - Butterfly Valve for Precise Flow Control
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Valves offer exceptional performance and durability, meeting ISO 5752 S-20 standards. Available in sizes ranging from 40A to 1000A, with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The discs come in Ductile Iron, Stainless Steel, and Aluminum Bronze to suit varied applications. Featuring Stainless Steel stems and a choice of NBR, EPDM, Viton, or Teflon seat and packaging materials for maximum efficiency.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

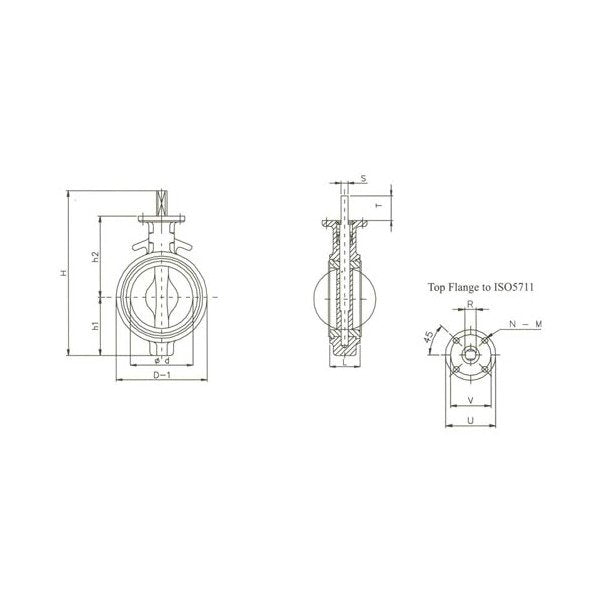

Specifications D
40 mm
Specifications D 1
86 mm
Specifications H
205 mm
Specifications H1
58 mm
Specifications H2
124 mm
Specifications L
33 mm
Specifications Size
040 - 1-1/2"
Specifications Standard
ISO
Specifications Stem R
10 mm
Specifications Stem S
8 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
3.1 kg
