Series 52 ANSI Full Lug Butterfly Valves

Name: Series 52 ANSI Full Lug Butterfly Valves
Brand: World Wide Metric, Inc.
SKU: VAL-8fa9e4
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-8fa9e4

Series 52 ANSI Full Lug Butterfly Valves: Precision-engineered for durability and performance, compliant with ANSI standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 52 ANSI Full Lug Butterfly Valves are designed for precision and durability. With size options ranging from 2" to 40" and materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves are versatile and reliable. The discs are available in Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel, ensuring optimal performance in various applications. Featuring stems made of K Monel or Stainless Steel and seats of EPDM, NBR, Neoprene, Silicone, or Viton, these valves offer exceptional sealing properties. Compliant with ANSI standards, these valves meet the stringent requirements of institutional and government procurement.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

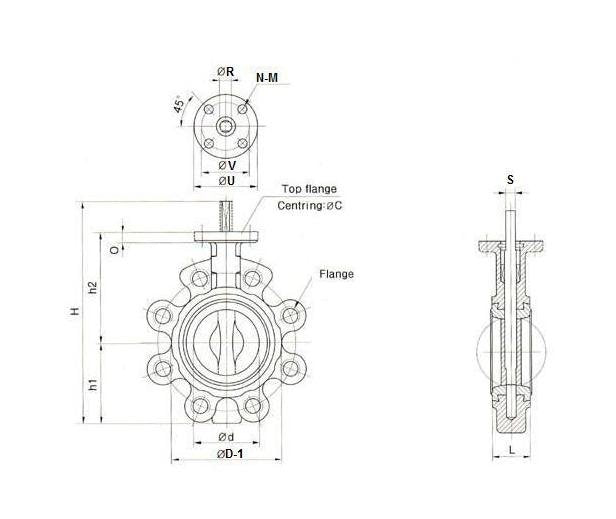

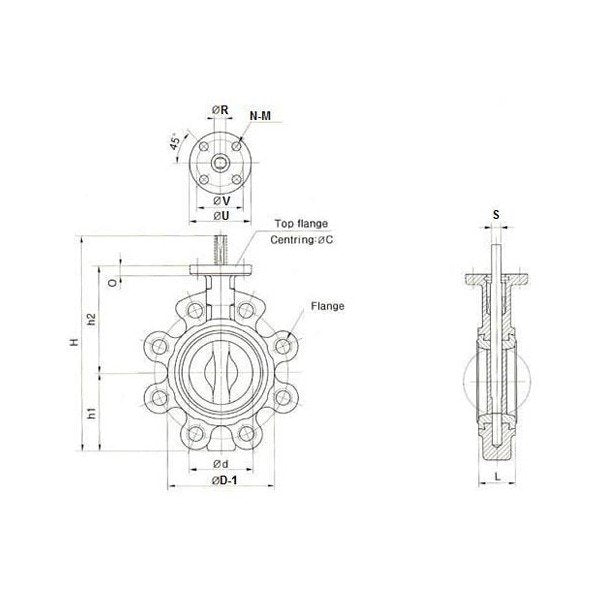

Specifications C

98.5 mm

Specifications D

40 mm

Specifications D 1

86 mm

Specifications H

205 mm

Specifications H1

58 mm

Specifications H2

124 mm

Specifications Hole Diameter

1/2 in

Specifications L

33 mm

Specifications Number Of Holes

Specifications O

10 mm

Specifications Size

040 - 1-1/2"

Specifications Standard

ANSI

Specifications Stem R

10 mm

Specifications Stem S

8 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F07

Specifications Top Flange To Iso 5211 M Diameter

9 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

90 mm

Specifications Top Flange To Iso 5211 V

70 mm

Specifications Weight

3.5 kg
