Series 52 ANSI Full Lug Butterfly Valves

Name: Series 52 ANSI Full Lug Butterfly Valves
Brand: World Wide Metric, Inc.
SKU: VAL-cdd233
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-cdd233

Series 52 ANSI Full Lug Butterfly Valves: Precision-engineered for reliability and compliance with ISO 5752 and ANSI standards. Ideal for industrial and government use.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 52 ANSI Full Lug Butterfly Valves are meticulously engineered to meet the rigorous standards of industrial and government procurement. With a size range from 2" to 40", these valves feature body materials including Cast Iron, Ductile Iron, Carbon Steel, and more. The available disc, stem, seat, and packing materials ensure optimal performance and durability. Compliant with ISO 5752 and ANSI standards, these valves are ideal for applications demanding reliability and precision.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

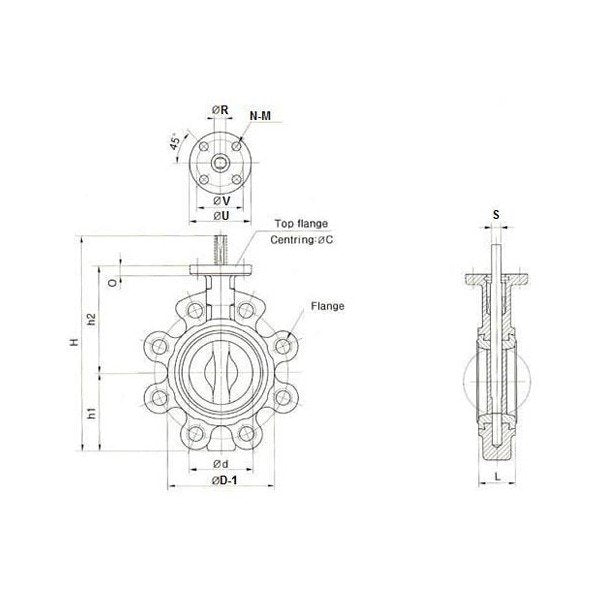

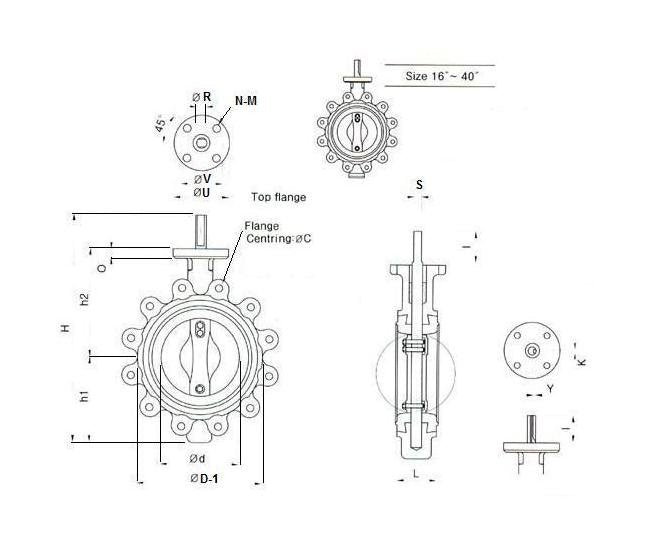

Specifications C

635 mm

Specifications D

477 mm

Specifications D 1

586 mm

Specifications H

1008 mm

Specifications H1

421 mm

Specifications H2

485 mm

Specifications Hole Diameter

1 1/8 in

Specifications L

127 mm

Specifications Number Of Holes

Specifications O

34 mm

Specifications Size

500 - 20"

Specifications Standard

ANSI

Specifications Stem I

60 mm

Specifications Stem K

10 mm

Specifications Stem R

45 mm

Specifications Stem Y

5 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F16

Specifications Top Flange To Iso 5211 M Diameter

19 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

230 mm

Specifications Top Flange To Iso 5211 V

190 mm

Specifications Weight

199 kg

Series 52 ANSI Full Lug Butterfly Valves
