Series 52 ANSI Full Lug Valves with ISO 5752 S-20 compliance for optimal performance. Sizes 2" to 40". Durable materials for industrial use.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Series 52 ANSI Full Lug Valves
$1,599.99
Quantity: 1
Claim Your Seller Account
Series 52 ANSI Full Lug Valves
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 52 ANSI Full Lug Valves are engineered to precision, meeting ISO 5752 S-20 standards for face to face dimensions. Available in sizes ranging from 2" to 40", these valves are crafted from high-quality materials like Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The disc, stem, and seat materials offer a variety of options including Stainless Steel, Aluminum Bronze, NBR, EPDM, Viton, Neoprene, and Silicone, ensuring versatile compatibility with different fluids. With a robust design and adherence to ANSI standards, these valves provide reliable performance in critical industrial applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

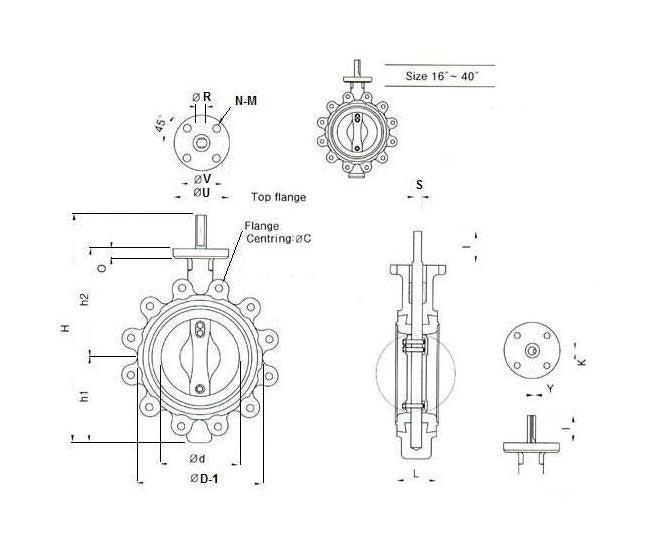

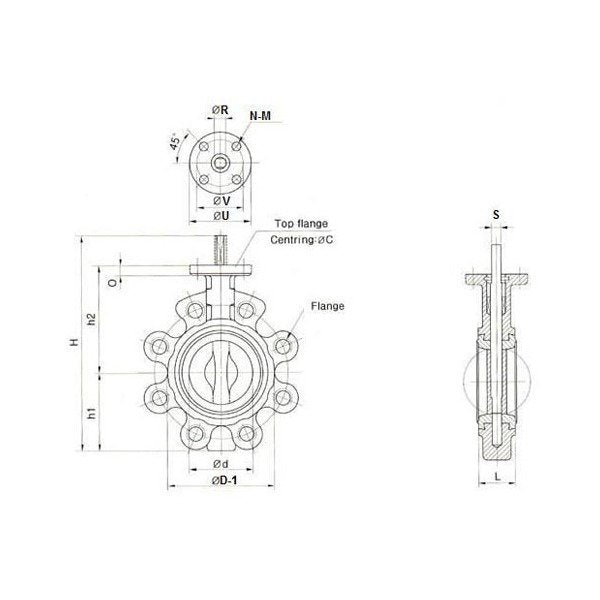

Specifications C
914.4 mm
Specifications D
729 mm
Specifications D 1
857 mm
Specifications H
1445 mm
Specifications H1
656 mm
Specifications H2
615 mm
Specifications Hole Diameter
1 1/4 in
Specifications L
180 mm
Specifications Number Of Holes
28
Specifications O
35 mm
Specifications Size
750 - 30"
Specifications Standard
ANSI
Specifications Stem I
120 mm
Specifications Stem K
10 mm
Specifications Stem R
70 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F25
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
598 kg
