Series 52 Full Lug Butterfly Valve ANSI-Compliant
Series 52 Full Lug Butterfly Valve ANSI-Compliant
SKU:VAL-02907c
Versatile Series 52 Full Lug Butterfly Valve ANSI-compliant for industrial use. Sizes 2"-40" with various materials. Reliable performance meeting ISO 5752 S-20 and ANSI standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Series 52 Full Lug Butterfly Valve ANSI-Compliant
$699.99
Quantity: 1
Claim Your Seller Account
Series 52 Full Lug Butterfly Valve ANSI-Compliant
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 52 Full Lug Butterfly Valve ANSI is a versatile valve designed for industrial applications. With a size range from 2" to 40" and various body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, this valve offers durability and flexibility. The valve features a range of disc, stem, seat, and packing material options to suit different requirements. Compliant with ANSI standards, this valve ensures reliable performance and easy installation according to ISO 5752 S-20 specifications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

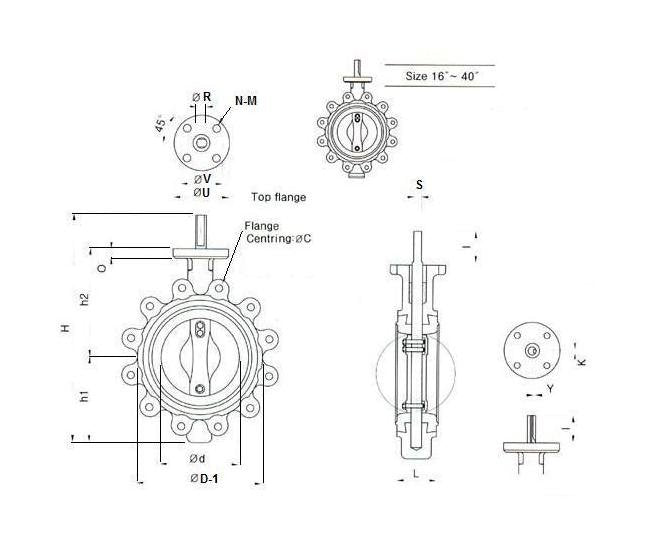

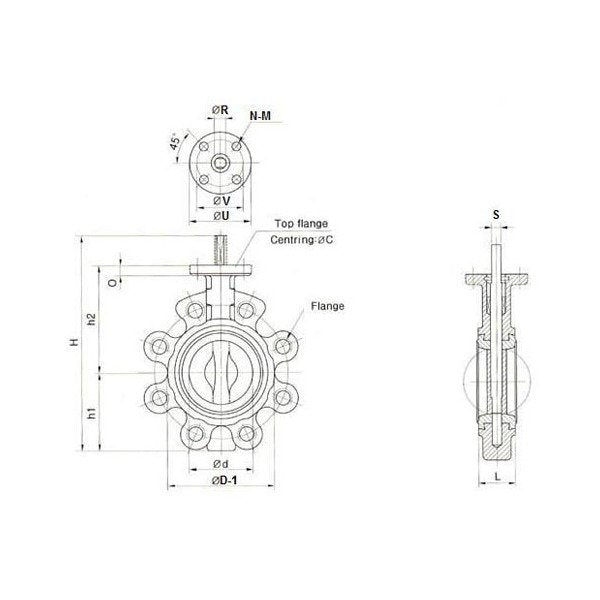

Specifications C
539.5 mm
Specifications D
387 mm
Specifications D 1
475 mm
Specifications H
817 mm
Specifications H1
343 mm
Specifications H2
369 mm
Specifications Hole Diameter
1 in
Specifications L
102 mm
Specifications Number Of Holes
16
Specifications O
23 mm
Specifications Size
400 - 16"
Specifications Standard
ANSI
Specifications Stem I
60 mm
Specifications Stem K
10 mm
Specifications Stem R
35 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F14
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Weight
112 kg
