Series 52 Full Lug Valves ANSI - Industrial Grade Butterfly Valve
Series 52 Full Lug Valves ANSI - Industrial Grade Butterfly Valve
SKU:VAL-2540c6
Enhance industrial operations with the versatile and reliable Series 52 Full Lug Valves ANSI, crafted to meet ISO 5752 standards and ANSI specifications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Series 52 Full Lug Valves ANSI - Industrial Grade Butterfly Valve
$289.99
Quantity: 1
Claim Your Seller Account
Series 52 Full Lug Valves ANSI - Industrial Grade Butterfly Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 52 Full Lug Valves ANSI offer exceptional versatility and reliability for industrial applications. Compliant with ISO 5752 standards, these valves feature a flange connection according to ANSISize, ensuring seamless integration. Crafted from a range of durable materials, including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, with Disc options in Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel. Stem materials include K Monel and Stainless Steel, while the seat and packaging materials offer choices like EPDM, NBR, Viton, Neoprene, and Silicone. With precise dimensions and ANSI standardization, these valves guarantee optimal performance and longevity.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

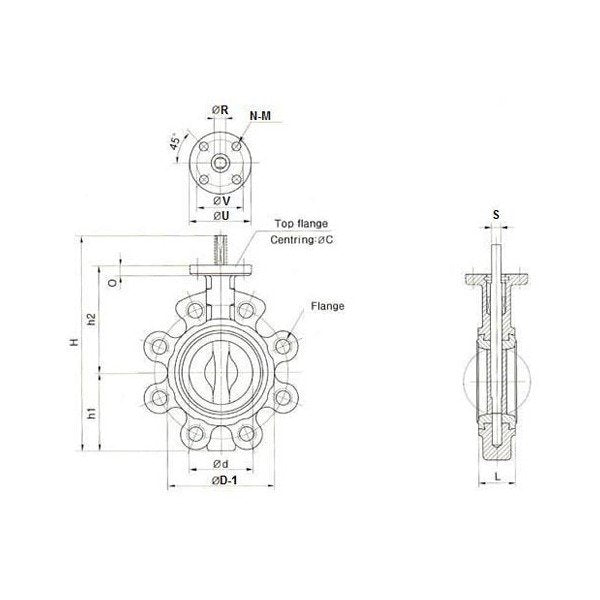

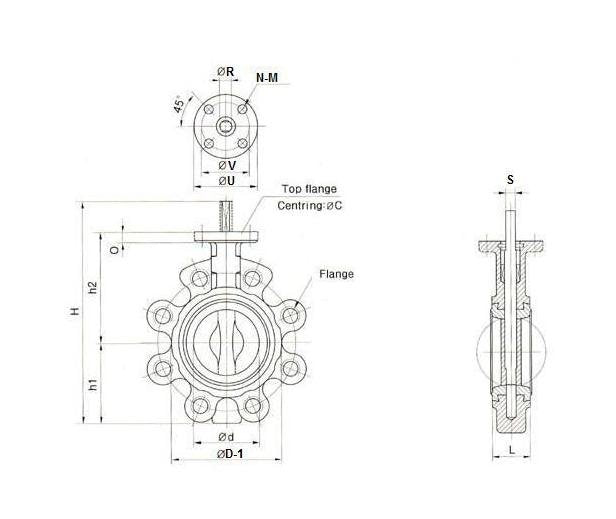

Specifications C
216 mm
Specifications D
125 mm
Specifications D 1
182 mm
Specifications H
317 mm
Specifications H1
111 mm
Specifications H2
177 mm
Specifications Hole Diameter
3/4 in
Specifications L
56 mm
Specifications Number Of Holes
8
Specifications O
12 mm
Specifications Size
125 - 5"
Specifications Standard
ANSI
Specifications Stem R
19 mm
Specifications Stem S
15 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
10.5 kg
