Series 52 Full Lug Valves ANSI - Institutional Grade Butterfly Valves
Series 52 Full Lug Valves ANSI - Institutional Grade Butterfly Valves
SKU:VAL-02ba67
Series 52 Full Lug Valves ANSI - Precision-engineered for institutional use, meeting ANSI and ISO standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Series 52 Full Lug Valves ANSI - Institutional Grade Butterfly Valves
$249.99
Quantity: 1
Claim Your Seller Account
Series 52 Full Lug Valves ANSI - Institutional Grade Butterfly Valves
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 52 Full Lug Valves ANSI are precision-engineered to meet the strict standards of institutional and government procurement. With a body material options range including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves ensure durability and reliability in diverse applications. The available Disc, Stem, and Seat materials guarantee utmost performance and longevity, while adhering to ANSI and ISO 5752 S-20 standards for optimal functionality. Whether in industrial, commercial, or municipal settings, these valves deliver exceptional control and efficiency.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

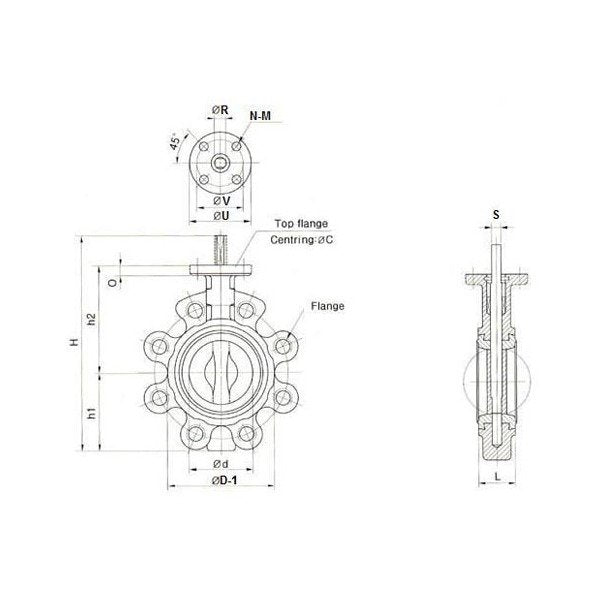

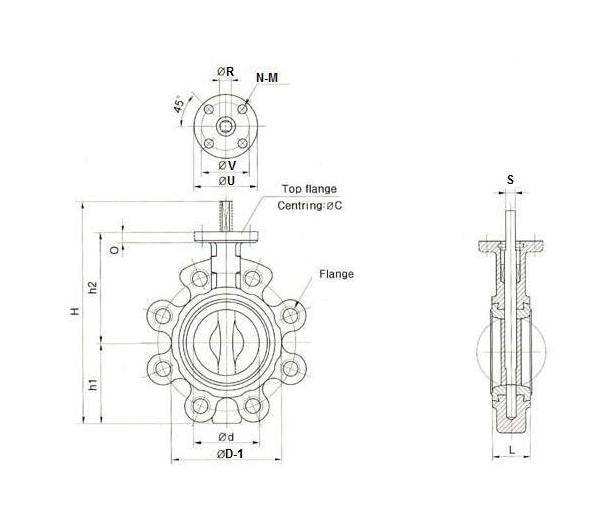

Specifications C
241.5 mm
Specifications D
150 mm
Specifications D 1
210 mm
Specifications H
357 mm
Specifications H1
134 mm
Specifications H2
191 mm
Specifications Hole Diameter
3/4 in
Specifications L
56 mm
Specifications Number Of Holes
8
Specifications O
12 mm
Specifications Size
150 - 6"
Specifications Standard
ANSI
Specifications Stem R
19 mm
Specifications Stem S
15 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
12.5 kg
