Series 52 Full Lug Valves JIS 16K - Institutional Grade
Series 52 Full Lug Valves JIS 16K - Institutional Grade
SKU:VAL-ca2cfb
Enhance operations with Series 52 Full Lug Valves JIS 16K, designed for institutional applications.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Series 52 Full Lug Valves JIS 16K - Institutional Grade
$999.99
Quantity: 1
Claim Your Seller Account
Series 52 Full Lug Valves JIS 16K - Institutional Grade
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 52 Full Lug Valves JIS 16K are engineered to meet the stringent demands of institutional and government applications. Compliant with ISO standards, these valves offer a wide size range from 50A to 1000A, ensuring suitability for various industrial setups. Crafted from durable materials like Cast Iron, Ductile Iron, and Stainless Steel, with options for different disc, stem, and seat materials, these valves provide reliable performance under high pressures. With precise specifications and reliable construction, these valves are ideal for institutional procurement needs.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

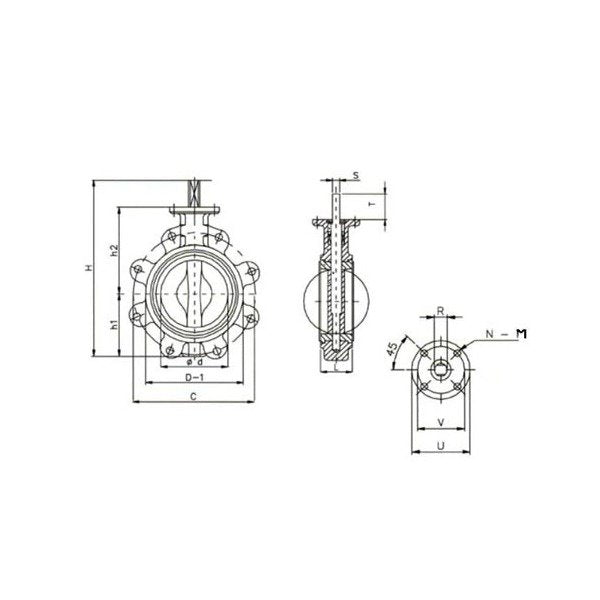

Specifications C
1210 mm
Specifications D
990 mm
Specifications D 1
1125 mm
Specifications H
1802 mm
Specifications H1
790 mm
Specifications H2
842 mm
Specifications Hole Diameter
56 mm
Specifications L
216 mm
Specifications Number Of Holes
28
Specifications Size
1000 - 40"
Specifications Standard
JIS
Specifications Stem R
90 mm
Specifications Stem T
140 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
350 mm
Specifications Top Flange To Iso 5211 V
298 mm
Specifications Weight
1221 kg
