Series 55 ANSI Double Flanged Butterfly Valve
Series 55 ANSI Double Flanged Butterfly Valve
SKU:VAL-e4216e
Durable Series 55 ANSI Double Flanged Butterfly Valve for industrial applications, compliant with ISO 5752 and ANSI standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Series 55 ANSI Double Flanged Butterfly Valve
$349.99
Quantity: 1
Claim Your Seller Account
Series 55 ANSI Double Flanged Butterfly Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 ANSI Double Flanged Butterfly Valve offers exceptional durability and versatility, with a size range from 2" to 40". Ideal for various applications, it features body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The valve's disc, stem, and seat materials provide excellent resistance to different media types. With compliance to ISO 5752 and ANSI standards, this valve ensures reliable performance in industrial settings.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

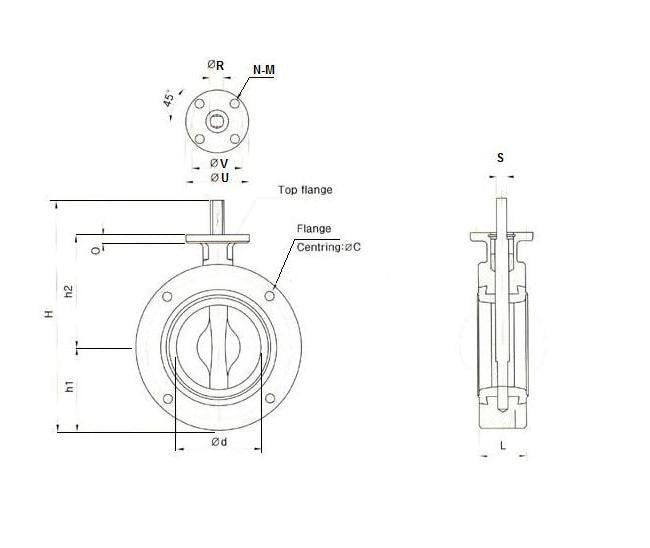

Specifications C
139.5 mm
Specifications D
65 mm
Specifications H
247 mm
Specifications H1
87.5 mm
Specifications H2
129.5 mm
Specifications Hole Diameter
5/8 in
Specifications L
46 mm
Specifications Number Of Holes
4
Specifications O
11 mm
Specifications Size
065 - 2-1/2"
Specifications Standard
ANSI
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
8.9 kg
