Series 55 ANSI Double Flanged Butterfly Valve

Name: Series 55 ANSI Double Flanged Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-4c271b
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-4c271b

Series 55 ANSI Double Flanged Butterfly Valve, sizes 2" - 40", various materials, meets ISO 5752 S-20 and ANSI standards.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 55 ANSI Double Flanged Butterfly Valve is designed for precision and durability, meeting ISO 5752 S-20 standards. Available in sizes ranging from 2" to 40", this valve boasts a variety of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With options for Coated, Ductile Iron, Stainless Steel, and Aluminum Bronze discs, as well as K Monel and Stainless Steel stems, this valve ensures optimal performance in diverse applications. The seat and packing materials, NBR, EPDM, Viton, Neoprene, and Silicone, guarantee efficient sealing. Ideal for industrial and institutional use, the valve complies with ANSI standards for reliability and quality.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

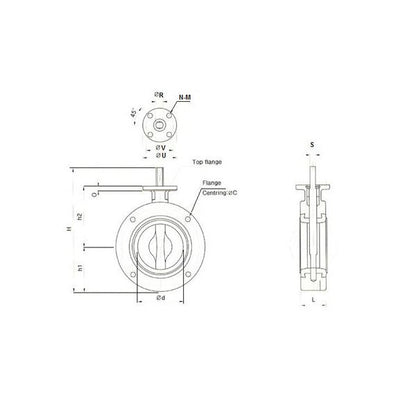

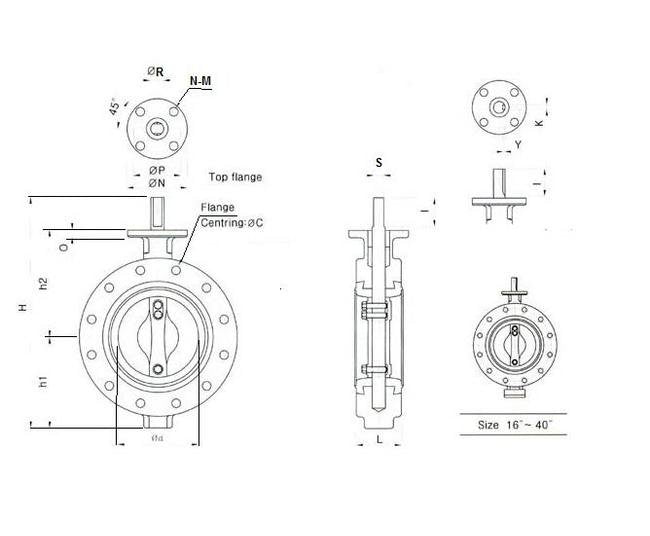

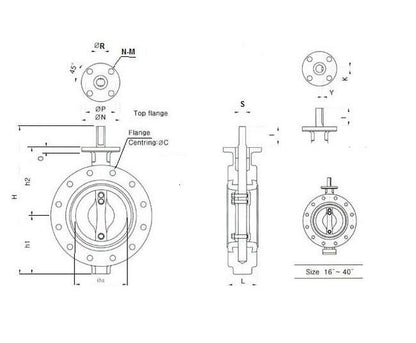

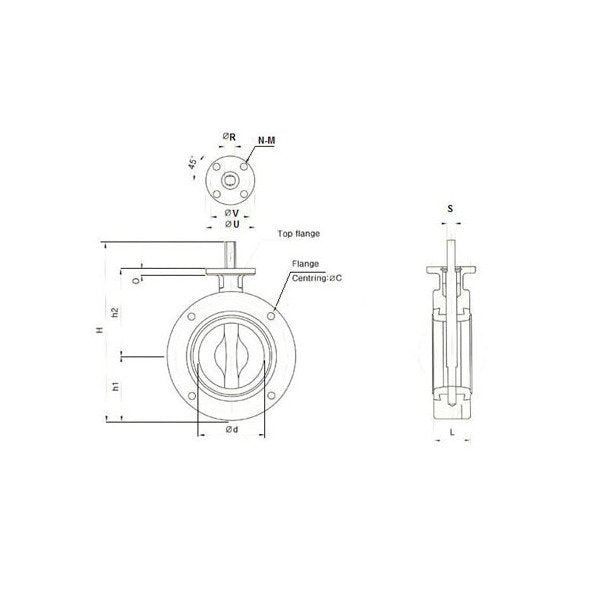

Specifications C

978 mm

Specifications D

785 mm

Specifications H

1495 mm

Specifications H1

630 mm

Specifications H2

669 mm

Specifications Hole Diameter

1 1/2 in

Specifications L

180 mm

Specifications Number Of Holes

Specifications O

35 mm

Specifications Size

800 - 32"

Specifications Standard

ANSI

Specifications Stem I

140 mm

Specifications Stem K

14 mm

Specifications Stem R

80 mm

Specifications Stem Y

5.5 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F25

Specifications Top Flange To Iso 5211 M Diameter

22 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

300 mm

Specifications Top Flange To Iso 5211 V

250 mm

Specifications Weight

745 kg
