Series 55 ANSI Double Flanged Valves
Series 55 ANSI Double Flanged Valves
SKU:VAL-c85cce
High-performance Series 55 Double Flanged Valves for precise control in industrial applications. Sizes range from 2" to 40".
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Initiate Order
Series 55 ANSI Double Flanged Valves
$1,299.00
Quantity: 1
Claim Your Seller Account
Series 55 ANSI Double Flanged Valves
$1,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 ANSI Double Flanged Valves are designed to meet the high standards of ISO 5752 S-20 and ANSI specifications, offering a size range from 2" to 40". Constructed from a selection of durable materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves ensure reliable performance in various applications. With options for coated or stainless steel discs, K Monel or Stainless Steel stems, and NBR, EPDM, Viton, Neoprene, or Silicone seat materials, these valves provide versatility and superior sealing capabilities. Ideal for institutional and government buyers seeking precision-engineered valves that meet stringent requirements.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

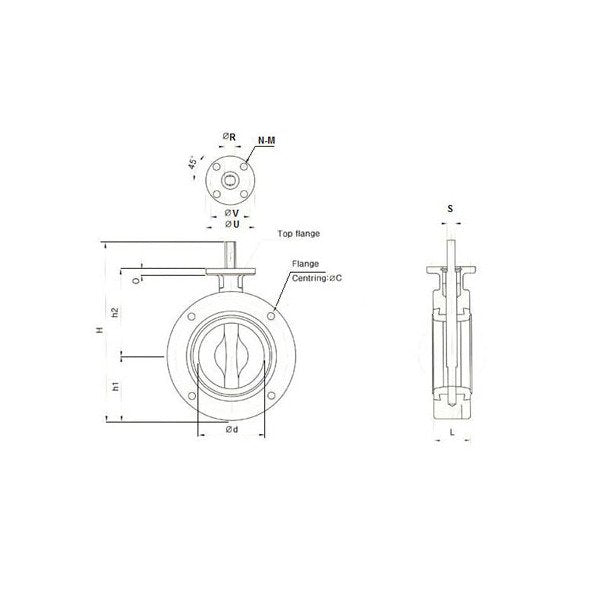

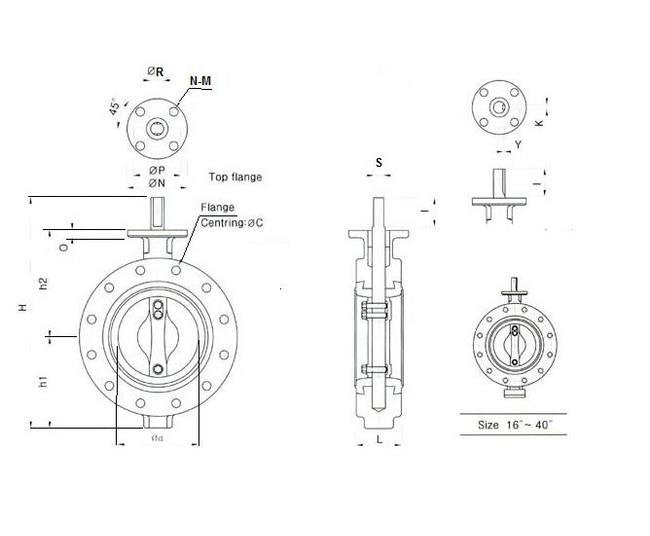

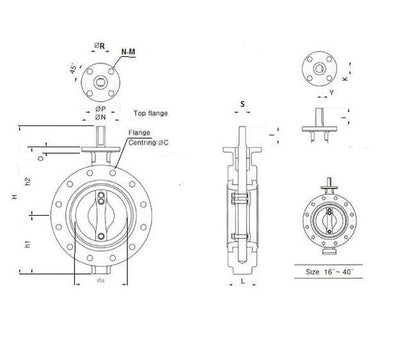

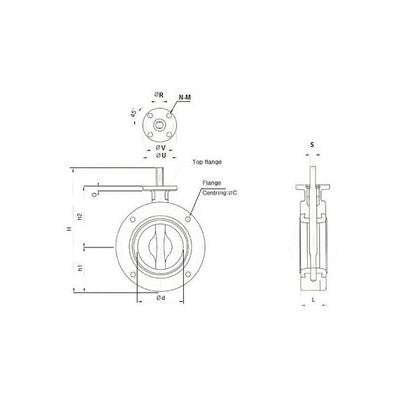

Specifications C
914.4 mm
Specifications D
729 mm
Specifications H
1445 mm
Specifications H1
656 mm
Specifications H2
615 mm
Specifications Hole Diameter
1 1/4 in
Specifications L
180 mm
Specifications Number Of Holes
28
Specifications O
35 mm
Specifications Size
750 - 30"
Specifications Standard
ANSI
Specifications Stem I
120 mm
Specifications Stem K
10 mm
Specifications Stem R
70 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F25
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
658 kg
