Series 55 ANSI Double Flanged Valves
Series 55 ANSI Double Flanged Valves
SKU:VAL-e2e159
Premium Series 55 ANSI Double Flanged Valves for industrial reliability and performance.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Series 55 ANSI Double Flanged Valves
$1,599.99
Quantity: 1
Claim Your Seller Account
Series 55 ANSI Double Flanged Valves
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 ANSI Double Flanged Valves are expertly engineered for precision and durability. Meeting ISO 5752 S-20 standards, these valves come in a size range of 2" to 40" with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With a variety of seat, disc, and stem material options available, these valves ensure optimal performance and reliability in diverse industrial applications. Trust in the quality and compliance of these valves for your critical operations.

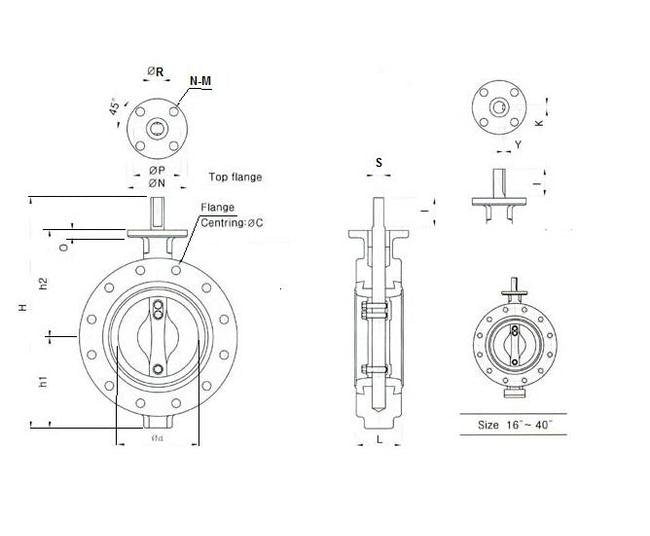

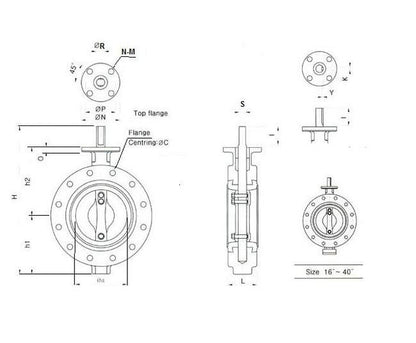

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications C
1200 mm
Specifications D
990 mm
Specifications H
1802 mm
Specifications H1
790 mm
Specifications H2
842 mm
Specifications Hole Diameter
1 1/2 in
Specifications L
200 mm
Specifications Number Of Holes
36
Specifications O
40 mm
Specifications Size
1000 - 40"
Specifications Standard
ANSI
Specifications Stem I
140 mm
Specifications Stem K
14 mm
Specifications Stem R
90 mm
Specifications Stem Y
5.5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F30
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
1307 kg
