Series 55 Double Flanged Valves - ANSI Certified Industrial Butterfly Valves
Series 55 Double Flanged Valves - ANSI Certified Industrial Butterfly Valves
SKU:VAL-7eec50
Top-performing Series 55 Double Flanged Valves - ANSI Certified for precise flow control in industrial settings.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves - ANSI Certified Industrial Butterfly Valves
$499.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves - ANSI Certified Industrial Butterfly Valves
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance and reliability with our Series 55 Double Flanged Valves crafted from premium materials like Carbon Steel, Stainless Steel, and more. Compliant with ANSI standards, these valves offer a wide size range from 2" to 40" to cater to diverse industrial applications. With options for various seat and stem materials, these valves ensure efficient flow control and durability, making them ideal for institutional procurement needs.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

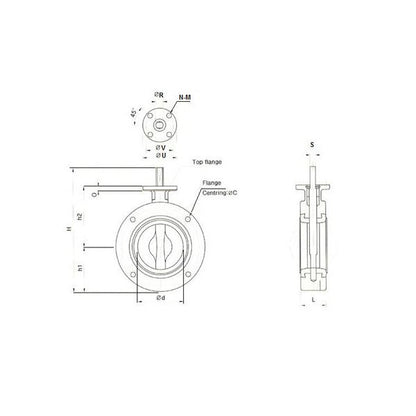

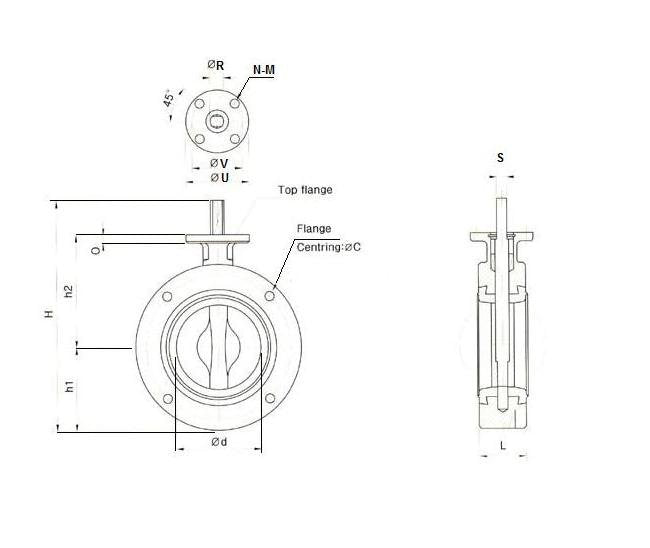

Specifications C
298.5 mm
Specifications D
198 mm
Specifications H
412 mm
Specifications H1
163 mm
Specifications H2
217 mm
Specifications Hole Diameter
3/4 in
Specifications L
60 mm
Specifications Number Of Holes
8
Specifications O
13 mm
Specifications Size
200 - 8"
Specifications Standard
ANSI
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
31.2 kg
