The Series 55 Double Flanged Valves ANSI are engineered to meet the strict standards of institutional and government procurement. With a size range of 600 - 24" and body materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves offer durability and reliability. Featuring disc materials such as Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel, along with stem materials like K Monel and Stainless Steel, these valves ensure optimal performance in critical environments. The available seat materials and packing options make these valves versatile for various applications, meeting the needs of institutional buyers seeking quality and compliance.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

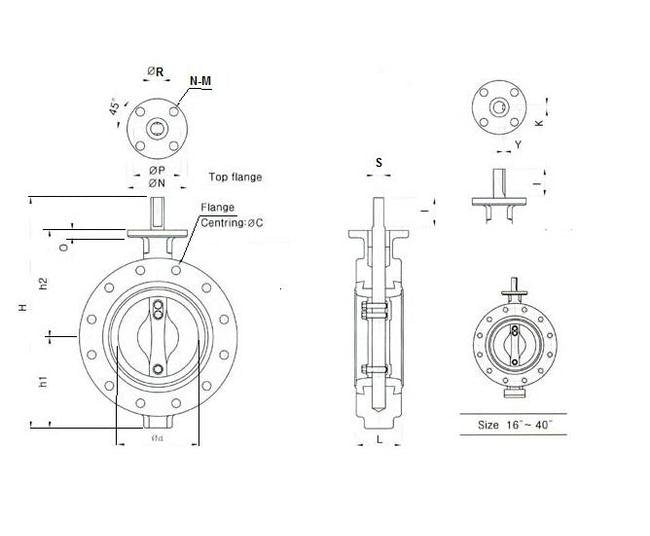

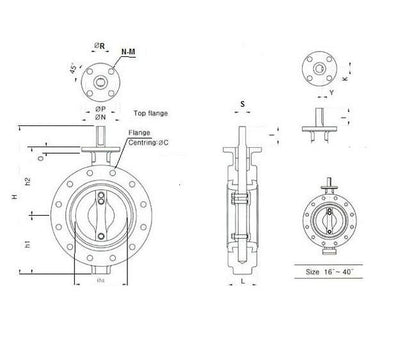

Specifications C
749.5 mm
Specifications D
560 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications Hole Diameter
1 1/4 in
Specifications L
154 mm
Specifications Number Of Holes
20
Specifications O
34 mm
Specifications Size
600 - 24"
Specifications Standard
ANSI
Specifications Stem I
60 mm
Specifications Stem K
10 mm
Specifications Stem R
50 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F16
Specifications Top Flange To Iso 5211 M Diameter
19 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
230 mm
Specifications Top Flange To Iso 5211 V
190 mm
Specifications Weight
292 kg
