Series 55 Double Flanged Valves ANSI - Institutional Grade
Series 55 Double Flanged Valves ANSI - Institutional Grade
SKU:VAL-ac9104
Explore our Series 55 Double Flanged Valves ANSI for durable and reliable fluid control in industrial settings. Compliant with ISO 5752 S-20 standards.
Regular price
$1,249.99
Regular price
Sale price
$1,249.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves ANSI - Institutional Grade
$1,249.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves ANSI - Institutional Grade
$1,249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves ANSI are precision-engineered for heavy-duty industrial applications, offering exceptional durability and reliability. Compliant with ISO 5752 S-20 standards, these valves feature a robust construction with body material options including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. With a size range from 2" to 40" and disc materials like Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel, these valves provide versatile solutions for various fluid control systems. The stem materials include K Monel and Stainless Steel, while the seat and packing materials offer choices like EPDM, NBR, Neoprene, Silicone, and Viton, ensuring compatibility with a wide range of operating conditions.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

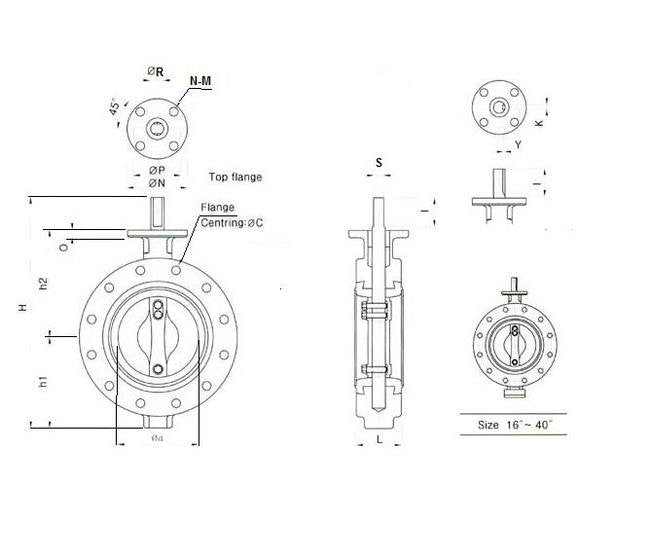

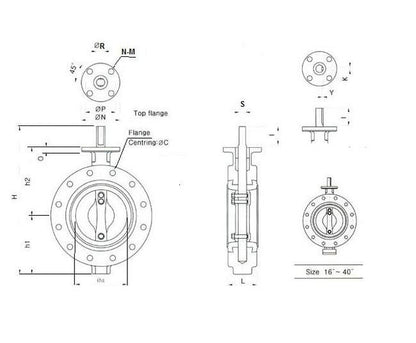

Specifications C
1086 mm
Specifications D
900 mm
Specifications H
1625 mm
Specifications H1
690 mm
Specifications H2
671 mm
Specifications Hole Diameter
1 1/2 in
Specifications L
180 mm
Specifications Number Of Holes
32
Specifications O
38 mm
Specifications Size
900 - 36"
Specifications Standard
ANSI
Specifications Stem I
140 mm
Specifications Stem K
14 mm
Specifications Stem R
80 mm
Specifications Stem Y
5.5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F30
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
944 kg
