Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
SKU:VAL-42510b
Enhance operational efficiency with Series 55 Double Flanged Valves ANSI - precise, reliable, compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
$599.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves ANSI are engineered to meet the stringent demands of institutional facilities and government procurement. With a size range of 2" to 40" and construction from durable materials including Bronze, Carbon Steel, and Stainless Steel, these valves ensure reliable performance. Featuring Stem materials like K Monel and Stainless Steel, along with Seat options such as EPDM and Viton, these valves guarantee compatibility with a variety of applications. Compliant with ANSI standards, these valves are ideal for critical systems requiring precision and reliability.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

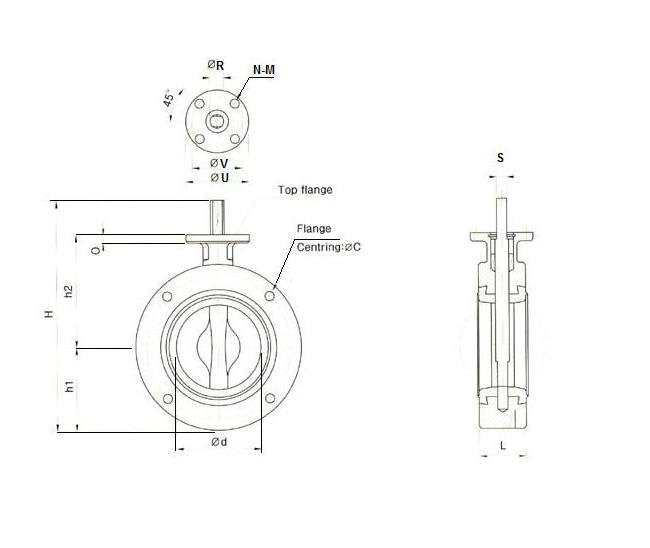

Specifications C
120.5 mm
Specifications D
52 mm
Specifications H
240 mm
Specifications H1
77.5 mm
Specifications H2
130.5 mm
Specifications Hole Diameter
5/8 in
Specifications L
43 mm
Specifications Number Of Holes
4
Specifications O
11 mm
Specifications Size
050 - 2"
Specifications Standard
ANSI
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
6.8 kg
