Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
SKU:VAL-46cfce
Series 55 Double Flanged Valves ANSI - Precision-engineered butterfly valves for industrial applications, compliant with ISO 5752 S-20 and ANSI standards.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
$789.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves ANSI combine precision engineering with durability for optimal performance in industrial applications. With sizes ranging from 2" to 40" and materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer a versatile solution for various fluid control needs. Featuring seat materials like NBR, EPDM, Viton, Neoprene, and Silicone, along with options for different disc, stem, and packing materials, these valves ensure superior corrosion resistance and longevity. Compliant with ISO 5752 S-20 and ANSI standards, these valves are designed to meet the rigorous demands of institutional and government procurement requirements.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

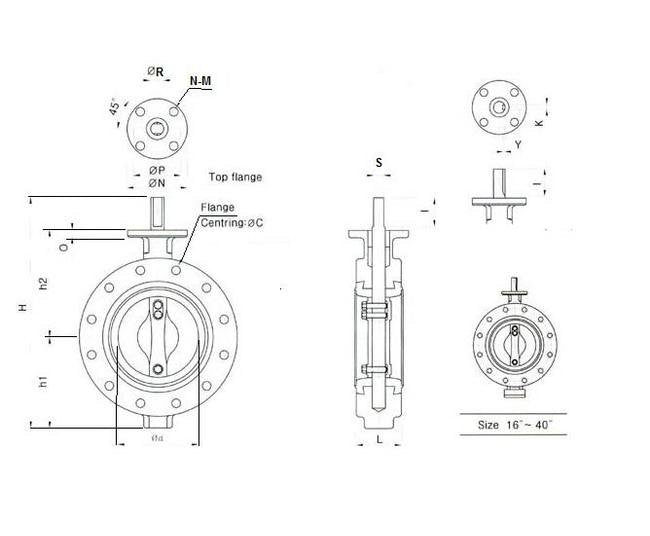

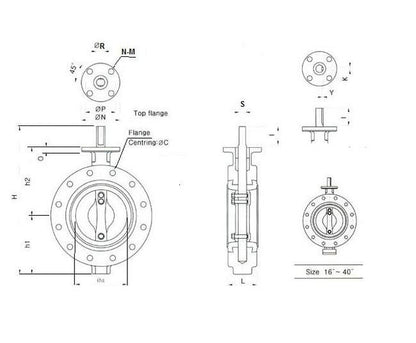

Specifications C
578 mm
Specifications D
438 mm
Specifications H
877 mm
Specifications H1
366 mm
Specifications H2
406 mm
Specifications Hole Diameter
1 1/8 in
Specifications L
114 mm
Specifications Number Of Holes
16
Specifications O
23 mm
Specifications Size
450 - 18"
Specifications Standard
ANSI
Specifications Stem I
60 mm
Specifications Stem K
10 mm
Specifications Stem R
38 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F14
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Weight
147 kg
