Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
SKU:VAL-ff0c55
Series 55 Double Flanged Valves ANSI - Premium industrial butterfly valves for precise fluid control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
$599.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves ANSI - Institutional-Grade Butterfly Valves
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves ANSI are precision-engineered for durability and reliability in industrial settings. With a size range from 2" to 40" and a variety of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer unparalleled versatility. The disc, stem, and seat materials ensure optimal performance, while the ANSI standard compliance guarantees seamless integration. Whether it's Bronze, Aluminum Bronze, Coated, Ductile Iron, or Stainless Steel, these valves excel in fluid control applications with superior quality and precision.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

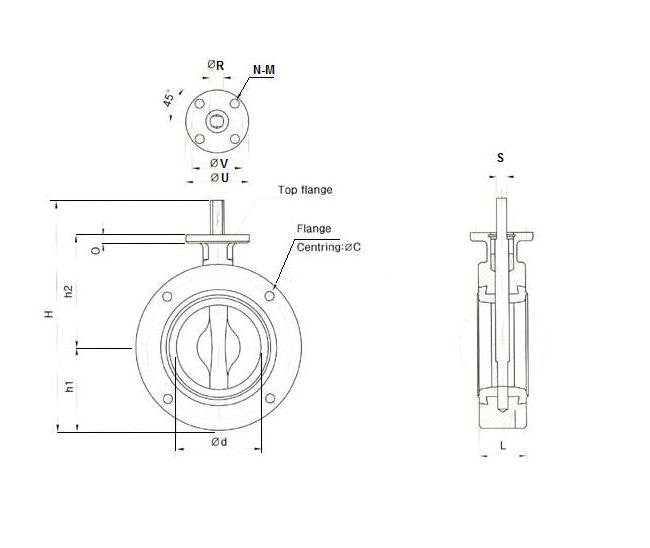

Specifications C
216 mm
Specifications D
125 mm
Specifications H
331 mm
Specifications H1
125 mm
Specifications H2
177 mm
Specifications Hole Diameter
3/4 in
Specifications L
56 mm
Specifications Number Of Holes
8
Specifications O
12 mm
Specifications Size
125 - 5"
Specifications Standard
ANSI
Specifications Stem R
19 mm
Specifications Stem S
15 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
16.8 kg
