Series 55 Double Flanged Valves - ANSI Standard
Series 55 Double Flanged Valves - ANSI Standard
SKU:VAL-79ec21
Premium Series 55 Valves - Meeting ANSI Standards for Reliable Performance
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves - ANSI Standard
$899.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves - ANSI Standard
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves are designed to meet the stringent requirements of institutional and government buyers. With a size range from 50A to 1000A (2" to 40") and body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer versatility and durability. The disc, stem, and seat materials are available in various options to suit different applications. Compliant with ANSI standards, these valves ensure reliable performance and longevity in critical industrial settings.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

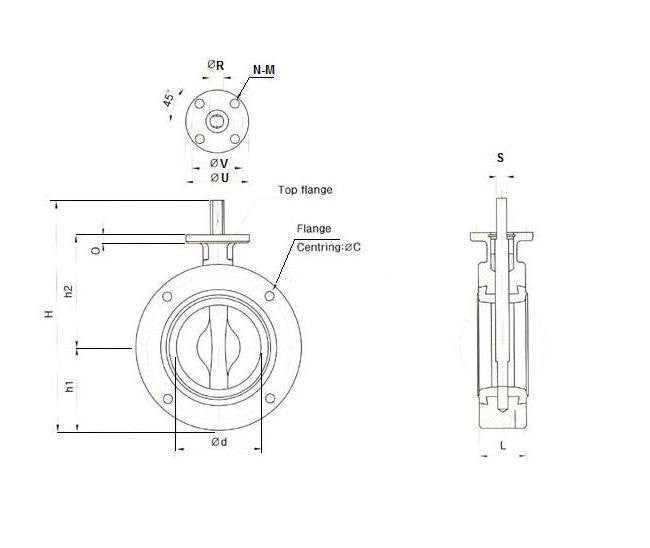

Specifications C
362 mm
Specifications D
248 mm
Specifications H
506 mm
Specifications H1
205 mm
Specifications H2
267 mm
Specifications Hole Diameter
7/8 in
Specifications L
68 mm
Specifications Number Of Holes
12
Specifications O
15 mm
Specifications Size
250 - 10"
Specifications Standard
ANSI
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F10
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
46.2 kg
