Series 55 Double Flanged Valves JIS 10K - Institutional Grade
Series 55 Double Flanged Valves JIS 10K - Institutional Grade
SKU:VAL-97a8db
Series 55 Double Flanged Valves JIS 10K - Premium institutional valves for precise control and durability.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves JIS 10K - Institutional Grade
$1,499.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves JIS 10K - Institutional Grade
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves JIS 10K offer exceptional durability and versatility, designed to meet the stringent requirements of institutional and government procurement standards. With a size range from 50A to 1000A and body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure reliable performance in varied applications. The availability of disc materials such as Ductile Iron, Stainless Steel, and Aluminum Bronze, along with seat options of NBR, EPDM, Viton, and Teflon, caters to specific operational needs. Suitable for critical systems that demand precision and adherence to standards.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

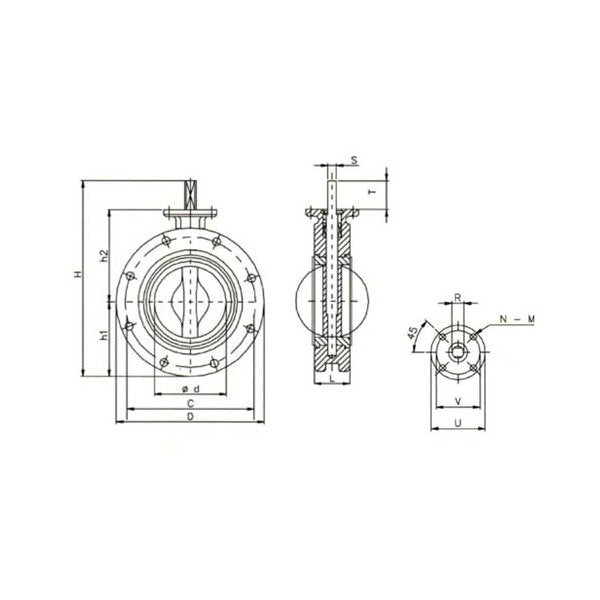

Specifications C
730 mm
Specifications D
795 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications Hole Diameter
33 mm
Specifications L
154 mm
Specifications Number Of Holes
24
Specifications Size
600 - 24"
Specifications Standard
JIS
Specifications Stem R
50 mm
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
292 kg
