Series 55 Double Flanged Valves JIS 10K - Institutional Grade
Series 55 Double Flanged Valves JIS 10K - Institutional Grade
SKU:VAL-d42aa8
High-quality Series 55 Double Flanged Valves JIS 10K meeting ISO 5752 S-20 standards for institutional procurement needs.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Series 55 Double Flanged Valves JIS 10K - Institutional Grade
$1,299.99
Quantity: 1
Claim Your Seller Account
Series 55 Double Flanged Valves JIS 10K - Institutional Grade
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves JIS 10K are precision-engineered to meet the stringent requirements of institutional and government procurement standards. With a size range from 50A to 1000A and a variety of body materials including Carbon Steel and Stainless Steel, these valves ensure durable and reliable performance. Featuring disc materials such as Ductile Iron and Stainless Steel and seat materials like EPDM and Viton, they offer versatile compatibility for a range of applications. Designed to meet ISO 5752 S-20 standards, these valves guarantee exceptional quality and performance for institutional buyers.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

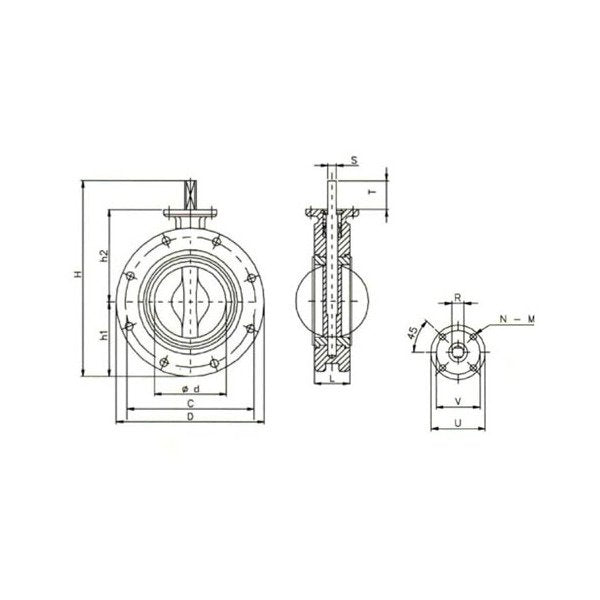

Specifications C
840 mm
Specifications D
905 mm
Specifications H
1355 mm
Specifications H1
580 mm
Specifications H2
574 mm
Specifications Hole Diameter
33 mm
Specifications L
165 mm
Specifications Number Of Holes
24
Specifications Size
700 - 28"
Specifications Standard
JIS
Specifications Stem R
70 mm
Specifications Stem T
120 mm
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
254 mm
Specifications Weight
539 kg
