Series 550 Heavy Duty I Beam Running Gear for S Beam Cranes

Name: Series 550 Heavy Duty I Beam Running Gear for S Beam Cranes
Brand: Clutch Engineering
SKU: CRA-e9c864
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-e9c864

Upgrade your S Beam crane with Series 550 Running Gear for reliable performance and durability.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

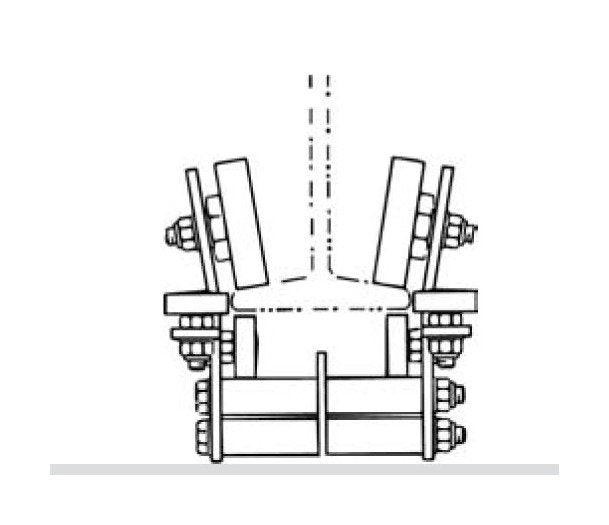

Enhance the functionality of your S Beam crane with the Series 550 Heavy Duty I Beam Running Gear. Featuring steel main rollers with polyurethane tires, horizontal guide, and anti-lift rollers, this running gear ensures smooth operation and precise load handling. With a maximum load capacity of 770 lb and an operating temperature range of -22 to 220 °F, this running gear is designed for durability and performance in various industrial settings. Easy maintenance and independent side shield removal make this running gear a reliable choice for efficient crane operations.

Product Specifications

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

770 lb | 350 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Polyurethane Tire, with Horizontal Guide & Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

33.7 lb | 15.3 kg
