Series 56 Mono Flanged Valves - DIN PN10 Butterfly Valve
Series 56 Mono Flanged Valves - DIN PN10 Butterfly Valve
SKU:VAL-efe602
Premium Series 56 Mono Flanged Valves - DIN PN10: ISO 5752 S16 Compliant, Durable Construction, Various Material Options
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Series 56 Mono Flanged Valves - DIN PN10 Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
Series 56 Mono Flanged Valves - DIN PN10 Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 56 Mono Flanged Valves DIN PN10 are expertly designed to meet the requirements of ISO 5752 S16 standards. With a size range from 50A to 800A, these valves are constructed with high-quality materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel for durability and reliability. The valve features disc materials like Aluminum Bronze, Ductile Iron, and Stainless Steel, along with Stainless Steel stems and NBR, EPDM, Viton, and Teflon seat and packing materials. Perfect for institutional applications requiring precision and robustness.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
30 mm

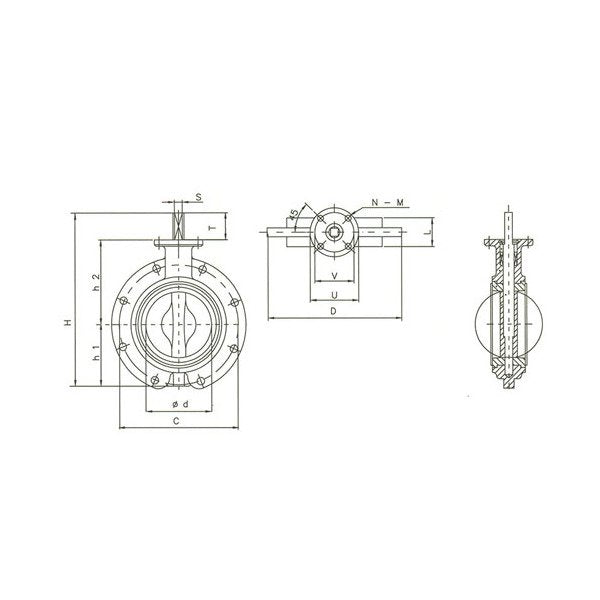

Specifications C
840 mm
Specifications D
895 mm
Specifications D 1
906 mm
Specifications H
1100 mm
Specifications H1
480 mm
Specifications H2
560 mm
Specifications L
229 mm
Specifications Number Of Bolts
24
Specifications Pressure
PN 10
Specifications Size
700 - 28"
Specifications Standard
DIN
Specifications Stem S
46 mm
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
21 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
330.0 kg
