Series 58 Teflon Lined Valves ANSI 150 - High-Performance Valve Solutions

Name: Series 58 Teflon Lined Valves ANSI 150 - High-Performance Valve Solutions
Brand: World Wide Metric, Inc.
SKU: VAL-1c289d
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-1c289d

Premium Series 58 Teflon Lined Valves ANSI 150 - Superior Quality & Performance

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 58 Teflon Lined Valves ANSI 150 offer superior performance and durability for a wide range of applications. With a size range of 2" to 24", these valves feature body materials including bronze, carbon steel, and stainless steel, along with disc and stem materials for maximum reliability. The Teflon seat and packing materials ensure a tight seal and resistance to corrosion, making these valves ideal for demanding industrial environments. Meeting ANSI standards, these valves provide precision control and long-term efficiency.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

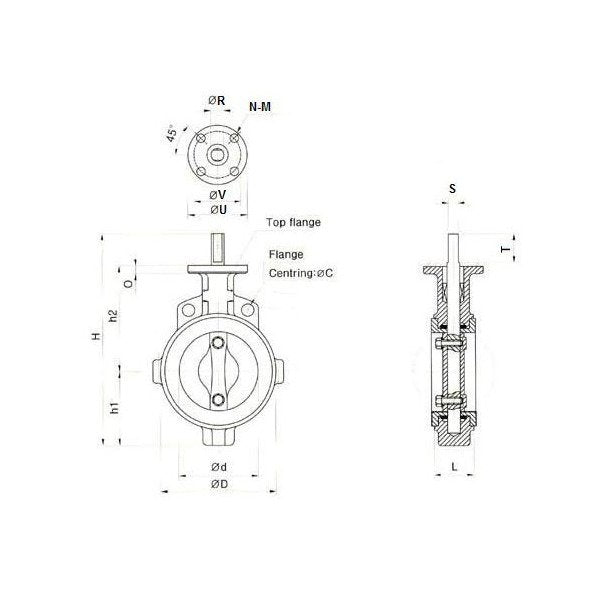

Specifications Bolt Diameter

22 mm

Specifications C

241.5 mm

Specifications D

210 mm

Specifications H

347 mm

Specifications H1

124 mm

Specifications H2

191 mm

Specifications L

56 mm

Specifications Number Of Bolts

Specifications O

12 mm

Specifications Pressure

ANSI 150LB

Specifications Size

150 - 6"

Specifications Standard

ANSI

Specifications Stem R

19 mm

Specifications Stem S

15 mm

Specifications Stem T

38 mm

Specifications Top Flange To Iso 5211 M Diameter

9 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

90 mm

Specifications Top Flange To Iso 5211 V

70 mm

Specifications Weight

9.4 kg

Series 58 Teflon Lined Valves ANSI 150 - High-Performance Valve Solutions
