Series 58 Teflon Lined Valves ANSI 150 - Institutional and Consumer use
Series 58 Teflon Lined Valves ANSI 150 - Institutional and Consumer use
SKU:VAL-51eaf3
High-quality Series 58 Teflon Lined Valves ANSI 150 for reliable and durable performance in varied applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Series 58 Teflon Lined Valves ANSI 150 - Institutional and Consumer use
$499.99
Quantity: 1
Claim Your Seller Account
Series 58 Teflon Lined Valves ANSI 150 - Institutional and Consumer use
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves ANSI 150 are meticulously designed to meet the demands of institutional and governmental procurement standards. Featuring a size range from 50A to 600A (2" - 24") and a variety of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer exceptional durability and reliability. With disc, stem, seat, and packing material options like Ductile Iron, Stainless Steel, Aluminum Bronze, NBR, EPDM, Viton, and Teflon, these valves ensure versatile compatibility in diverse applications. Compliant with ANSI and ISO standards, these valves guarantee optimal performance and efficiency.

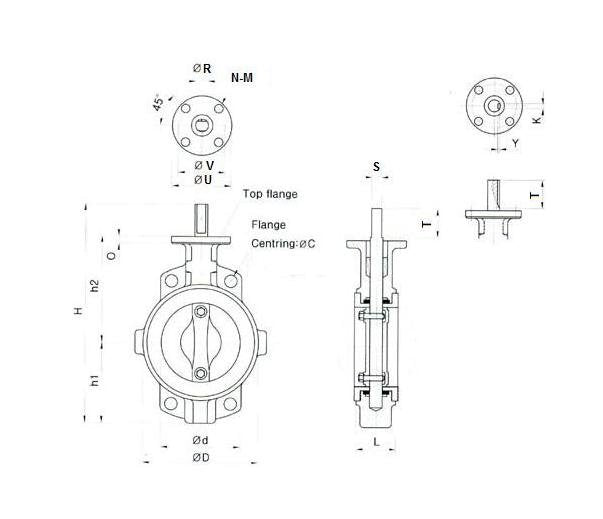

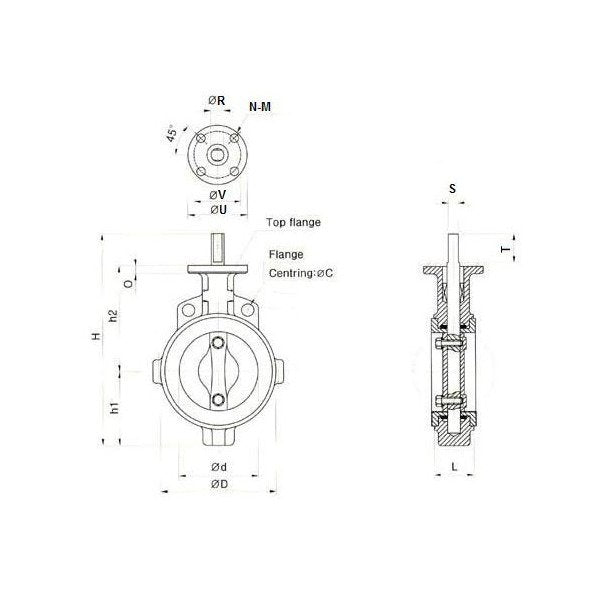

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
25 mm
Specifications C
432 mm
Specifications D
374 mm
Specifications H
601 mm
Specifications H1
252 mm
Specifications H2
315 mm
Specifications L
78 mm
Specifications Number Of Bolts
12
Specifications O
15 mm
Specifications Pressure
ANSI 150LB
Specifications Size
300 - 12"
Specifications Standard
ANSI
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
32.0 kg
