Series 58 Teflon Lined Valves ANSI 150 - Institutional Grade
Series 58 Teflon Lined Valves ANSI 150 - Institutional Grade
SKU:VAL-187d54
Series 58 Teflon Lined Valves ANSI 150 - Built for institutions requiring durability & precision.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Series 58 Teflon Lined Valves ANSI 150 - Institutional Grade
$599.99
Quantity: 1
Claim Your Seller Account
Series 58 Teflon Lined Valves ANSI 150 - Institutional Grade
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed to meet the stringent demands of institutional applications, the Series 58 Teflon Lined Valves ANSI 150 offer exceptional durability and reliability. Featuring a body material selection including Bronze, Carbon Steel, and Stainless Steel, along with disc materials such as Aluminum Bronze and Stainless Steel, these valves ensure optimal performance and longevity. With sizes ranging from 2" to 24", and pressure rating conforming to ANSI 150LB standards, these valves provide a robust solution for institutional settings where precision and quality are paramount.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

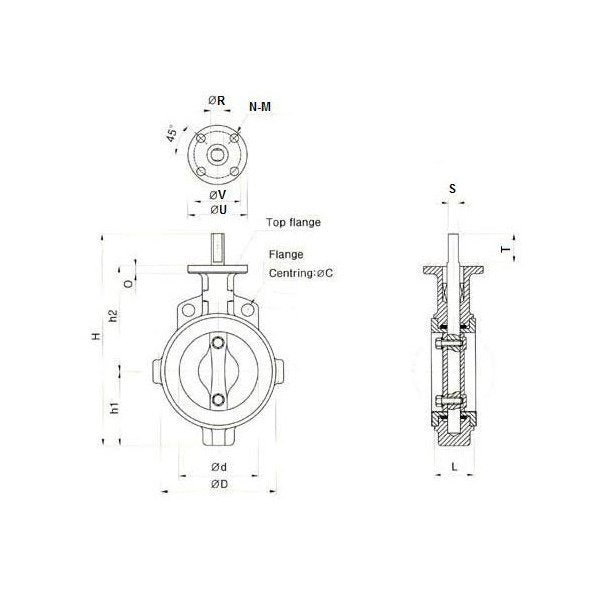

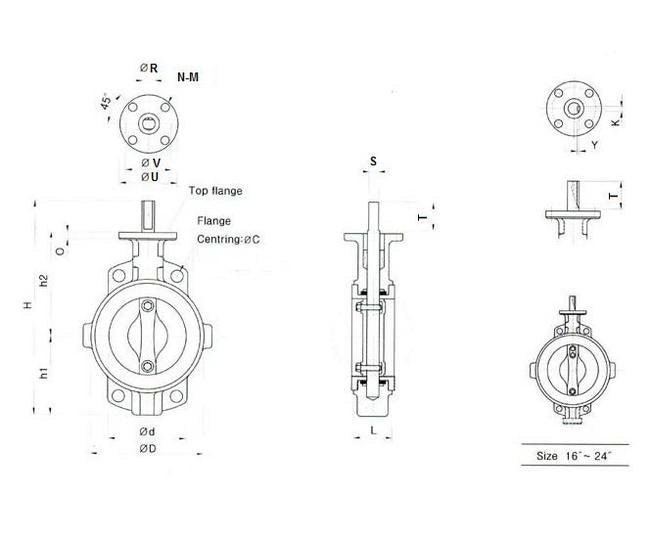

Specifications D
695 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications L
154 mm
Specifications Pressure
ANSI 150LB
Specifications Size
600 - 24"
Specifications Standard
ANSI
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
215 kg
