The Series 58 Teflon Lined Valves ANSI 150 are engineered for precision and durability, meeting ISO 5752 S-20 dimensions. With a size range of 2" to 24" and body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer versatility and reliability. Equipped with discs made of Ductile Iron, Stainless Steel, or Aluminum Bronze, stainless steel stems, and seats available in NBR, EPDM, Viton, or Teflon, these valves ensure optimal performance in various applications. Ideal for government and institutional buyers seeking high-quality valves that comply with ANSI standards.

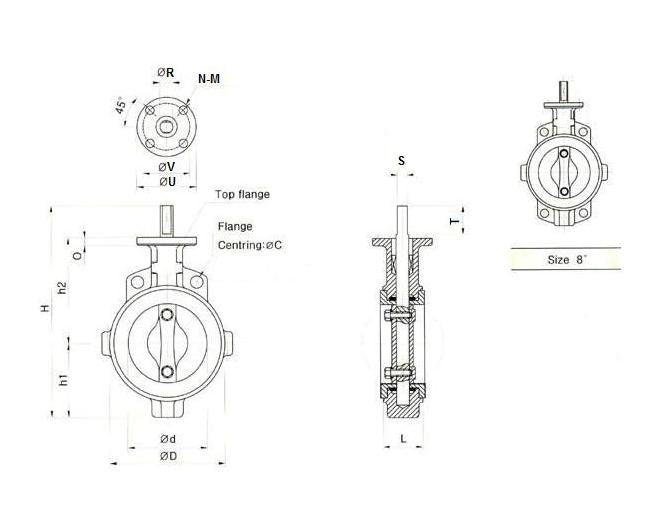

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
22 mm
Specifications C
298.5 mm
Specifications D
259 mm
Specifications H
433 mm
Specifications H1
163 mm
Specifications H2
238 mm
Specifications L
60 mm
Specifications Number Of Bolts
8
Specifications O
13 mm
Specifications Pressure
ANSI 150LB
Specifications Size
200 - 8"
Specifications Standard
ANSI
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.5 kg
