The Series 58 Teflon Lined Valves DIN PN10 are precision-engineered to meet the demanding requirements of institutional buyers. Compliant with ISO standards, these valves feature a range of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, ensuring durability and performance. The Teflon lining provides exceptional chemical resistance, making them ideal for industries requiring corrosion-resistant solutions. With a comprehensive size range from 2" to 24", these valves offer unmatched reliability for critical applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
23 mm

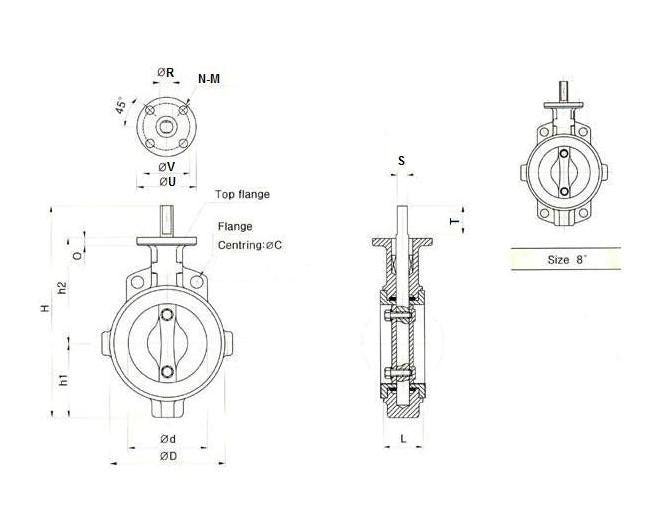

Specifications C
295 mm
Specifications D
259 mm
Specifications H
433 mm
Specifications H1
163 mm
Specifications H2
238 mm
Specifications L
60 mm
Specifications Number Of Bolts
8
Specifications O
13 mm
Specifications Pressure
PN 10
Specifications Size
200 - 8"
Specifications Standard
DIN
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.5 kg
