The Series 58 Teflon Lined Valves are meticulously designed to meet ISO 5752 S-20 standards, ensuring impeccable performance and durability. Available in sizes ranging from 50A to 600A, with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer versatility and reliability in industrial applications. The valve features a Teflon lining for enhanced chemical resistance and longevity, making it an ideal choice for demanding environments.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

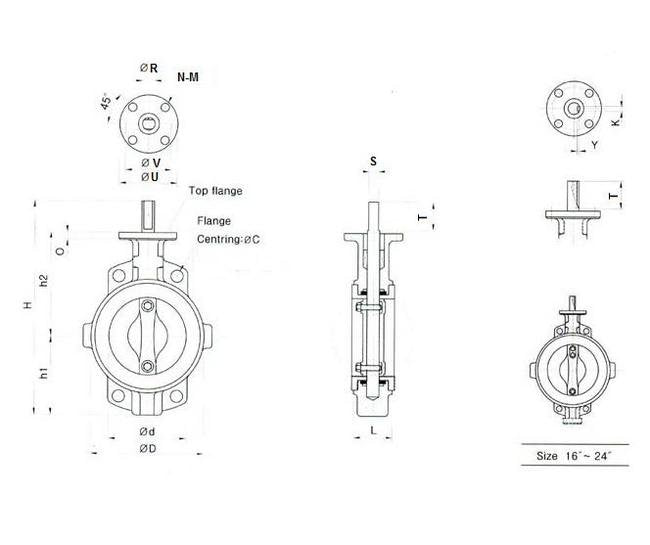

Specifications Bolt Diameter
30 mm
Specifications C
525 mm
Specifications D
475 mm
Specifications H
817 mm
Specifications H1
343 mm
Specifications H2
369 mm
Specifications L
102 mm
Specifications Number Of Bolts
16
Specifications O
23 mm
Specifications Pressure
PN 16
Specifications Size
400 - 16"
Specifications Standard
DIN
Specifications Stem K
10 mm
Specifications Stem R
35 mm
Specifications Stem T
60 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Weight
64 kg
