The Series 58 Teflon Lined Valves JIS 10K are meticulously engineered to meet the stringent demands of institutional applications. With sizes ranging from 2" to 24", these valves boast a durable construction featuring body materials like Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The Teflon lining ensures optimal performance and longevity, while the variety of available materials for discs, stems, seats, and packings cater to diverse operational requirements. Compliant with ISO 5752 S-20 standards, these valves offer superior reliability and precision in fluid control systems.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

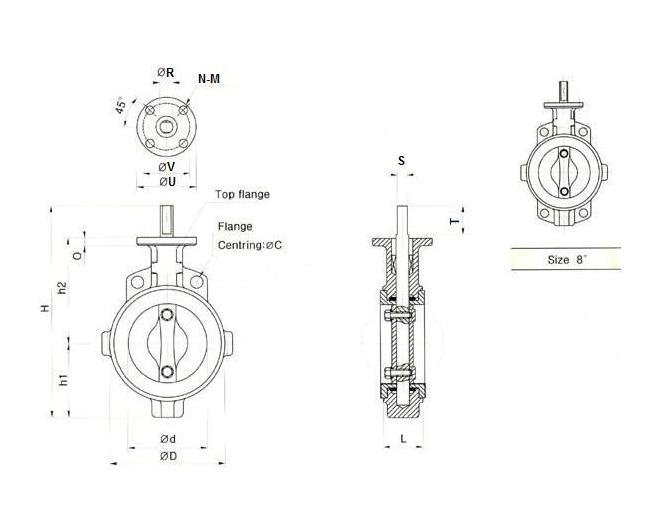

Specifications Bolt Diameter
23 mm
Specifications C
290 mm
Specifications D
259 mm
Specifications H
433 mm
Specifications H1
163 mm
Specifications H2
238 mm
Specifications L
60 mm
Specifications Number Of Bolts
12
Specifications O
13 mm
Specifications Pressure
10K
Specifications Size
200 - 8"
Specifications Standard
JIS
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.5 kg
