Series 58 Teflon Lined Valves JIS 16K - Institutional Grade
Series 58 Teflon Lined Valves JIS 16K - Institutional Grade
SKU:VAL-35bf05
Discover Series 58 Teflon Lined Valves JIS 16K for institutional and government use. Sizes 2" to 24" with Teflon lining for chemical resistance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Series 58 Teflon Lined Valves JIS 16K - Institutional Grade
$899.99
Quantity: 1
Claim Your Seller Account
Series 58 Teflon Lined Valves JIS 16K - Institutional Grade
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves JIS 16K are meticulously designed to meet the rigorous demands of institutional and government applications. With a size range of 2" to 24" and body material options including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves ensure durability and high performance. The Teflon lining offers superior chemical resistance, while the available seat materials such as EPDM, NBR, Viton, and Teflon guarantee reliable sealing. Compliant with ISO 5752 standards, these valves are ideal for critical industrial settings requiring precision and efficiency.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
25 mm

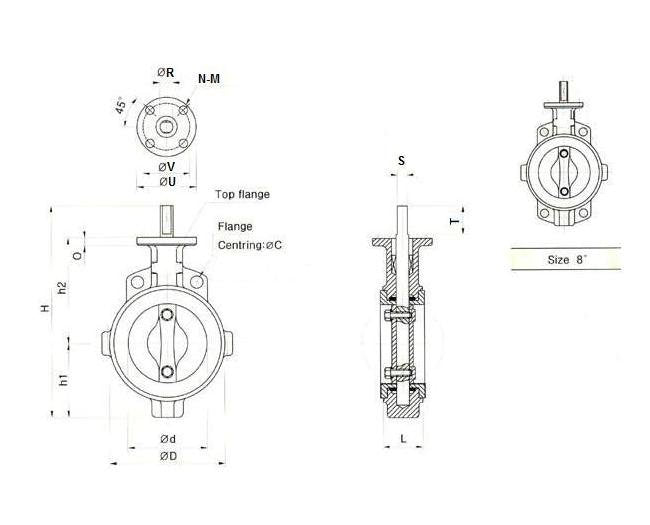

Specifications C
305 mm
Specifications D
259 mm
Specifications H
433 mm
Specifications H1
163 mm
Specifications H2
238 mm
Specifications L
60 mm
Specifications Number Of Bolts
12
Specifications O
13 mm
Specifications Pressure
16K
Specifications Size
200 - 8"
Specifications Standard
JIS
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.5 kg
