Series 58 Teflon Lined Valves JIS 5K - Institutional Grade
Series 58 Teflon Lined Valves JIS 5K - Institutional Grade
SKU:VAL-5db5af
Series 58 Teflon Lined Valves - Reliable, durable, and compliant valves for institutional use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Series 58 Teflon Lined Valves JIS 5K - Institutional Grade
$899.99
Quantity: 1
Claim Your Seller Account
Series 58 Teflon Lined Valves JIS 5K - Institutional Grade
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves JIS 5K are engineered to meet the stringent demands of institutional and government facilities. Featuring a size range from 2" to 24" and a robust body material selection including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure durability and performance under heavy-duty applications. With stem and seat material options of Stainless Steel, Teflon, NBR, and Viton, they provide reliable sealing and corrosion resistance. Compliant with ISO 5752 standards, these valves offer precise control and long-lasting efficiency.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

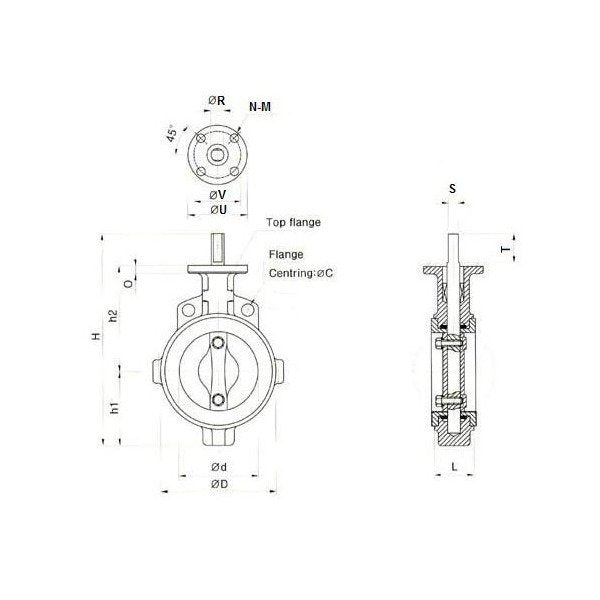

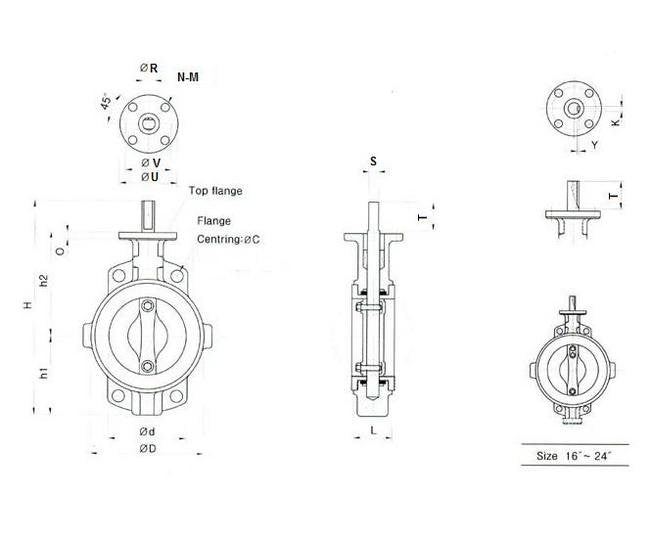

Specifications D
695 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications L
154 mm
Specifications Pressure
5K
Specifications Size
600 - 24"
Specifications Standard
JIS
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
215 kg
