Series 600 Sealed Rear Panel Mount Receptacle
$29.99
Quantity: 1
Claim Your Seller Account
Series 600 Sealed Rear Panel Mount Receptacle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 600 Sealed Rear Panel Mount Receptacle is a subminiature coaxial high-voltage connector renowned for its reliability in aerospace, defense, and commercial applications since 1964. Designed for use at 70,000 ft., it offers a voltage rating of 5kVDC, with a current rating of 1 Amp and an operating temperature range of -55 to 125 °C. This connector features a sealed receptacle, brass coupling nut material, and BeCu contact material with a gold finish, ensuring durability and efficient conductivity. Compliant with industry standards, this connector is the ideal choice for high-voltage applications requiring precision and steadfast performance.
Product Specifications
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 plug assemblies
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Mounting

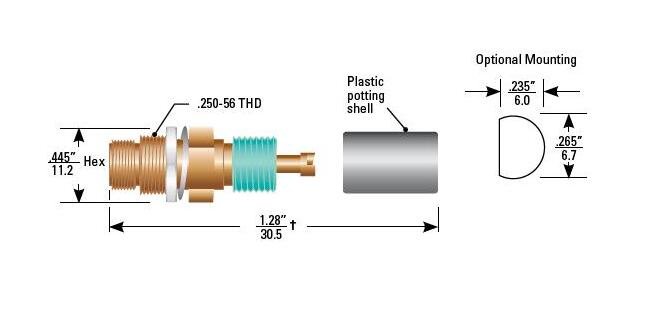

Requires clearance for .250-56 UNS thread or optional âDâ hole
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
