Series 6A Electro-Pneumatic Positioner with HART & Fieldbus Compatibility

Name: Series 6A Electro-Pneumatic Positioner with HART & Fieldbus Compatibility
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-c22146
Price: 399.99 USD
Availability: OutOfStock

SKU:ACT-c22146

High-performance Series 6A Electro-Pneumatic Positioner for precise pneumatic actuation. HART & Fieldbus compatible.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

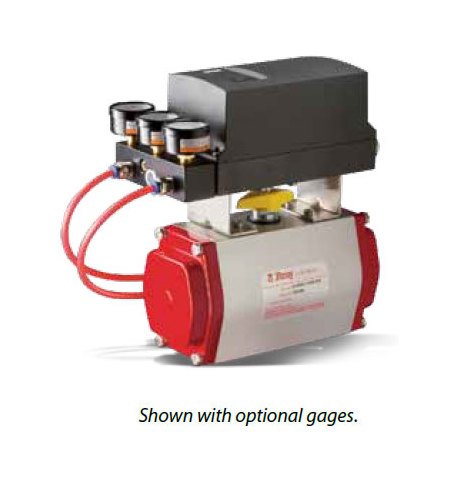

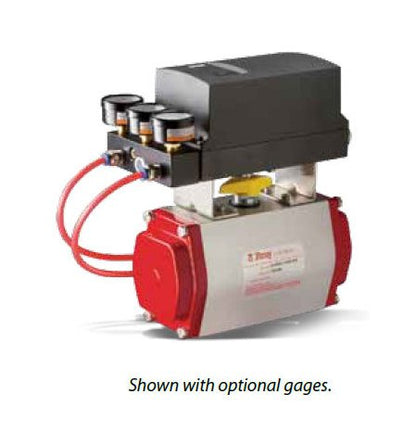

The Series 6A Electro-Pneumatic Positioner is a versatile and high-performance device designed for precise control in pneumatic actuation systems. It operates on a 4-20 mA analog input signal and features compatibility with HART, Foundation Fieldbus, and Profibus PA connections, ensuring seamless integration into various control systems. With a durable fiberglass-reinforced polymer housing and stainless steel fasteners, it meets NEMA 4, 4x, IP66 standards for robust protection against environmental elements. This positioner is lightweight at 2.0 lbs, facilitating easy installation and maintenance in industrial settings.

Product Specifications

Specifications Air Consumption

<0.00035 scfm

Specifications Analog Input Signal Dc

4 to 20 mA

Specifications Available Approvals

FM, CSA, CE, ATEX

Specifications Bus Input Signal

HART, Foundation Fieldbus, Profibus PA Connections

Specifications Control Element Type

Piezoelectric

Specifications Emc Requirements

EN 61326/A1 Appendix A.1 | NAMUR NE21 August 98

Specifications Housing Fasteners Material

Stainless Steel

Specifications Housing Material

Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection

Specifications Hysteresis

<0.2 %

Specifications Input Signal 2 Conduit Entries

1/2" NPT (M20x1.5)

Specifications Positioner Mounting

VDI/VDE 3845 (NAMUR)

Specifications Position Indicator Material

ABS polymer

Specifications Protection Class

NEMA 4,4x and IP66

Specifications Repeatability

0.32 %

Specifications Resolution

<0.05 %

Specifications Supply Input Signal

1/4" NPT (G 1/4")

Specifications Supply Pressure

20 to 102 psi | 1.4 to 7 bar

Specifications Temperature Range

-22 to +176 ÂºF | -30 to +80 ÂºC

Specifications Weight

2.0 lbs | 0.9 kg
