Series 6A Electro-Pneumatic Positioner with HART & Fieldbus Connectivity

Name: Series 6A Electro-Pneumatic Positioner with HART & Fieldbus Connectivity
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-0056ec
Price: 349.99 USD
Availability: OutOfStock

SKU:ACT-0056ec

Advanced Series 6A Electro-Pneumatic Positioner with precise control and durable construction.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

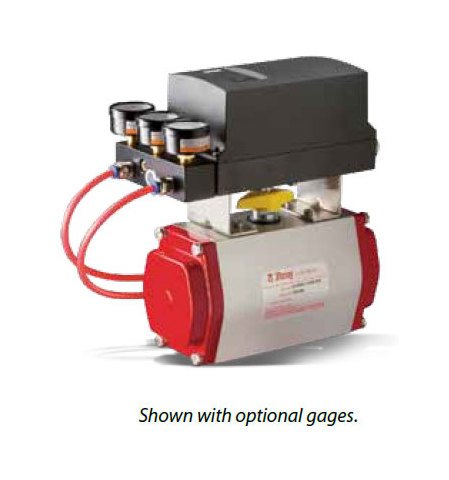

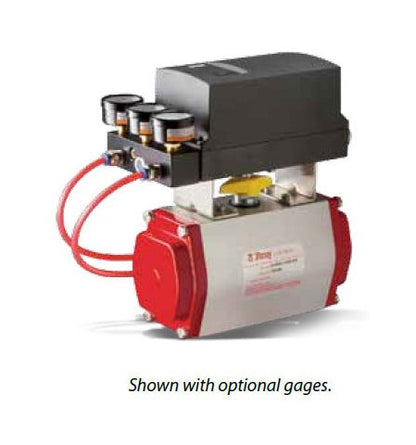

The Series 6A Electro-Pneumatic Positioner is a cutting-edge device designed for precise control in pneumatic actuation systems. With a supply pressure range of 20 to 102 psi, analog and bus input signal compatibility, and a resolution of <0.05%, this positioner ensures accurate and reliable performance. It is constructed using durable materials like fiberglass reinforced polymer and stainless steel for longevity and protection. Measuring at just 2.0 lbs, it is lightweight yet robust, making it ideal for various applications. Approved by FM, CSA, CE, and ATEX, this positioner meets stringent industry standards for quality and safety.

Product Specifications

Specifications Air Consumption

<0.00035 scfm

Specifications Analog Input Signal Dc

4 to 20 mA

Specifications Available Approvals

FM, CSA, CE, ATEX

Specifications Bus Input Signal

HART, Foundation Fieldbus, Profibus PA Connections

Specifications Control Element Type

Piezoelectric

Specifications Emc Requirements

EN 61326/A1 Appendix A.1 | NAMUR NE21 August 98

Specifications Housing Fasteners Material

Stainless Steel

Specifications Housing Material

Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection

Specifications Hysteresis

<0.2 %

Specifications Input Signal 2 Conduit Entries

1/2" NPT (M20x1.5)

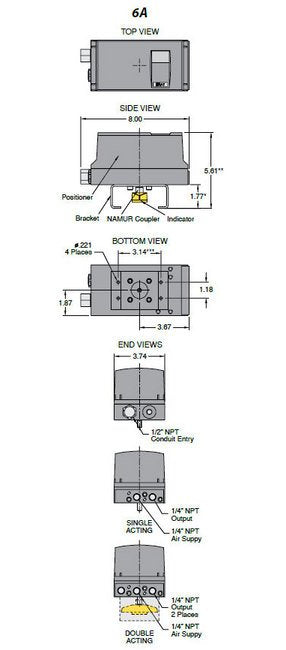

Specifications Positioner Mounting

VDI/VDE 3845 (NAMUR)

Specifications Position Indicator Material

ABS polymer

Specifications Protection Class

NEMA 4,4x and IP66

Specifications Repeatability

0.32 %

Specifications Resolution

<0.05 %

Specifications Supply Input Signal

1/4" NPT (G 1/4")

Specifications Supply Pressure

20 to 102 psi | 1.4 to 7 bar

Specifications Temperature Range

-22 to +176 ÂºF | -30 to +80 ÂºC

Specifications Weight

2.0 lbs | 0.9 kg

Series 6A Electro-Pneumatic Positioner with HART & Fieldbus Connectivity
