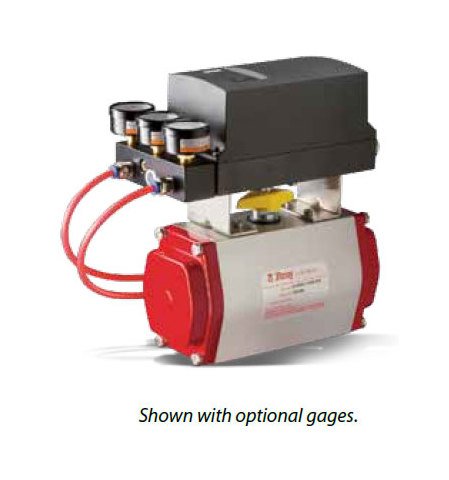

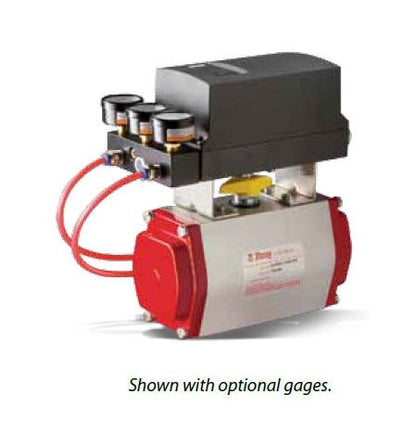

Series 6A Electro-Pneumatic Positioner with Position Feedback Module
Series 6A Electro-Pneumatic Positioner with Position Feedback Module
SKU:ACT-4057be
Experience precision control with the Series 6A Positioner, ideal for industrial applications. FM, CSA, CE, ATEX approved.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Series 6A Electro-Pneumatic Positioner with Position Feedback Module
$289.99
Quantity: 1
Claim Your Seller Account
Series 6A Electro-Pneumatic Positioner with Position Feedback Module
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 6A Electro-Pneumatic Positioner offers precise positioning control with a supply pressure range of 20 to 102 psi. Featuring low air consumption of <0.00035 scfm, this positioner supports analog input signal of 4-20mA, and multiple bus input signals. With robust construction meeting NEMA 4,4x and IP66 standards, this positioner is ideal for demanding industrial environments. Approved by FM, CSA, CE, and ATEX, this positioner guarantees reliable performance and compliance with international quality standards.
Product Specifications
Specifications Air Consumption
<0.00035 scfm
Specifications Analog Input Signal Dc
4 to 20 mA
Specifications Available Approvals
FM, CSA, CE, ATEX
Specifications Bus Input Signal
HART, Foundation Fieldbus, Profibus PA Connections
Specifications Control Element Type
Piezoelectric
Specifications Emc Requirements
EN 61326/A1 Appendix A.1 | NAMUR NE21 August 98
Specifications Housing Fasteners Material
Stainless Steel
Specifications Housing Material
Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection
Specifications Hysteresis
<0.2 %
Specifications Input Signal 2 Conduit Entries
1/2" NPT (M20x1.5)
Specifications Positioner Mounting
VDI/VDE 3845 (NAMUR)
Specifications Position Indicator Material
ABS polymer
Specifications Protection Class
NEMA 4,4x and IP66
Specifications Repeatability
0.32 %
Specifications Resolution
<0.05 %
Specifications Supply Input Signal
1/4" NPT (G 1/4")
Specifications Supply Pressure
20 to 102 psi | 1.4 to 7 bar
Specifications Temperature Range
-22 to +176 ºF | -30 to +80 ºC
Specifications Weight
2.0 lbs | 0.9 kg
